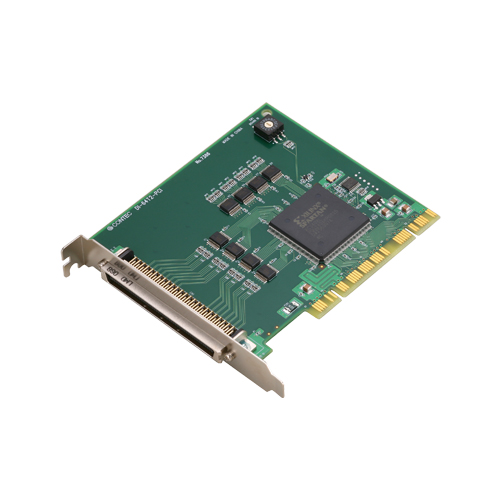

DI-64T2-PCI Digital input PCI card 64ch (non-isolated 5VDC-TTL)

* The end of repair date may change depending on the situation.

Unisolated TTL level input, unisolated open-collector output
You can use 32channels of the input signals as interrupt events
This product has a digital filter to prevent input signals from carrying noise or a chattering.
