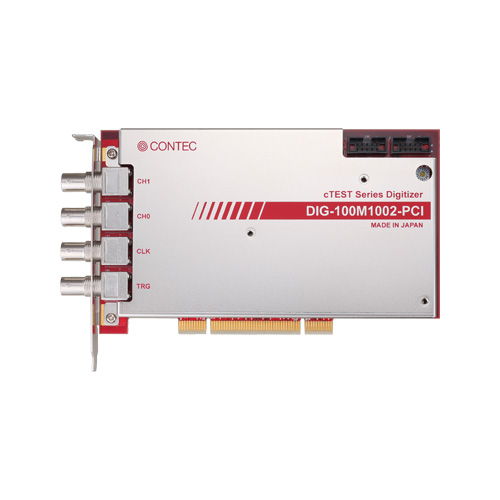

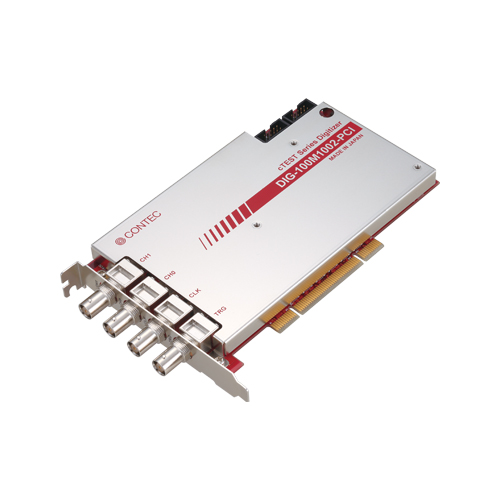

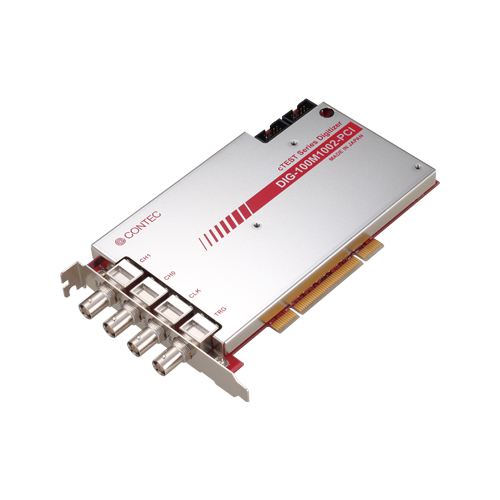

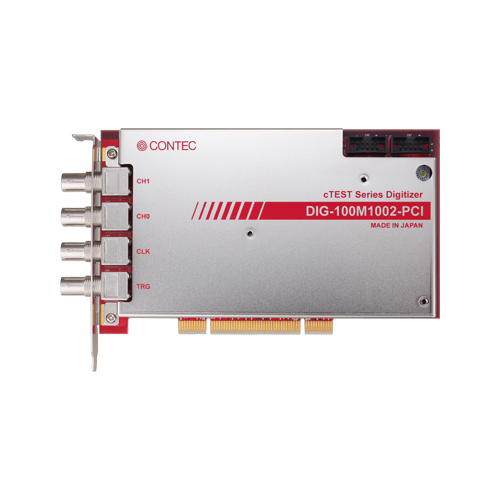

DIG-100M1002-PCI 100MSPS 2ch Digitizer Board for PCI

Standard Warranty3 yrs
Extended WarrantyAvailable

Free yourself from visual inspection. The inspected input signal can be automatically judged whether OK or NG
Front panel software is supplied to be used as a oscilloscope or a waveform judgment instrument.
Simultaneous sampling of 2 channels with a resolution of 10 bits and at 10MSPS (100nsec) maximum conversion speed.
The function of saving/reading configuration file and auto setup for sampling condition.
A variety settings for signal input.
The synchronization between external instrument and the board is possible with the reference clock I/O.

*
For details about an extended warranty, please contact us.

Supported OS

Specifications

Add-on Module

Series
Bus Specification	PCI
Size	Short Size

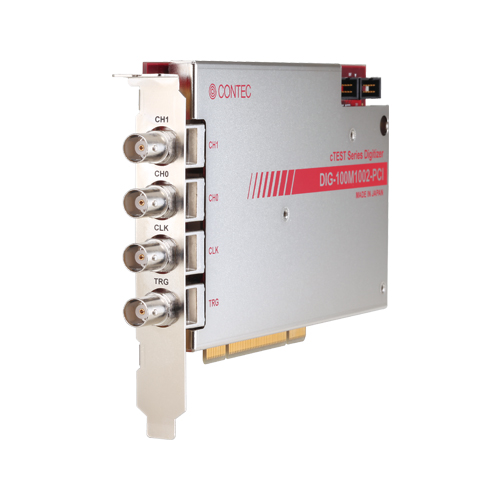

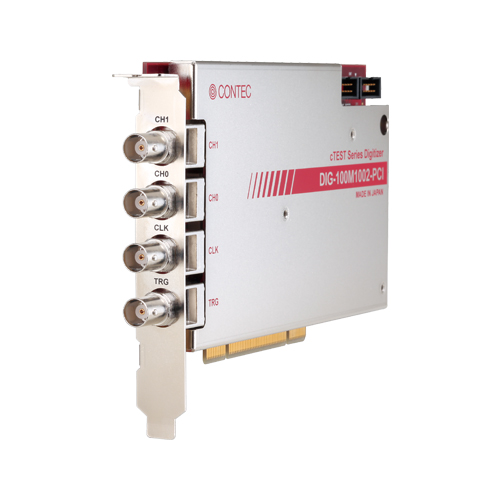

Used Connector	4x BNC

Measurement Instrument

Measurement Instrument	Digitizer
Function	Data logger; Oscilloscope; Waveform judgment

Supported OS

Supported OS	Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit)

Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit)

*
The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.
