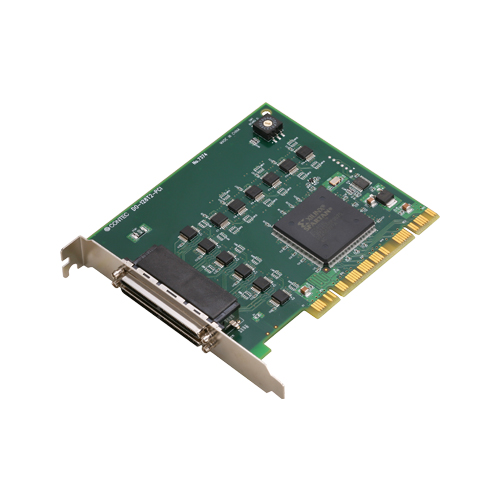

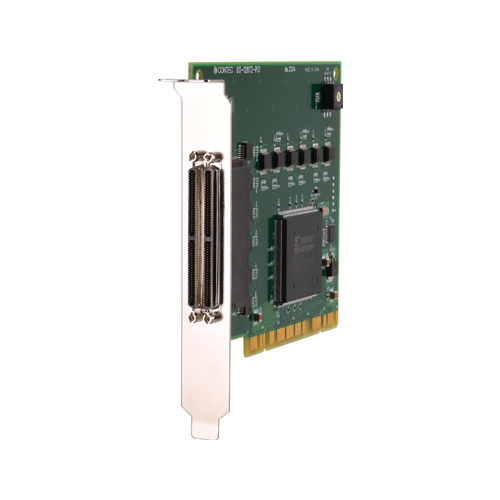

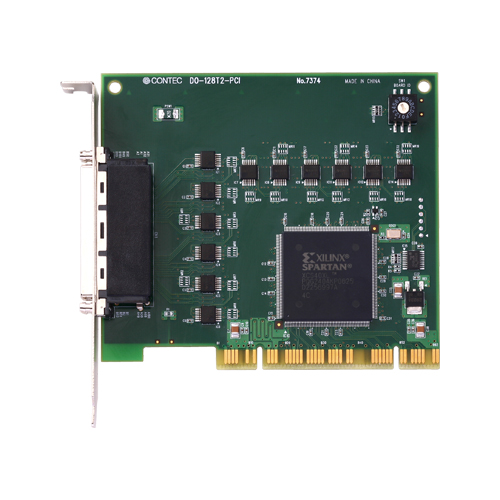

DO-128T2-PCI Digital output PCI card 128ch (non-isolated 5VDC-TTL)

  • Discontinued
  • Standard Warranty3 yrs
  • Extended WarrantyAvailable
  • End of Repair Service: 2020/12/25

Check a compatible replacement

* The end of repair date may change depending on the situation.

  • 128ch of unisolated open-collector output
  • Windows and Linux driver libraries are included
  • LabVIEW support
  • *
    For details about an extended warranty, please contact us.

Ordering Information

Replacement Product

Model Definition
Digital output PCI Express card 128ch (non-isolated 5VDC-TTL)
DO-128T-PE
Bus interface is different but the functions, I/O connector and the connector pin definitions are compatible.

Ordering Information

Model Description / Certification
DO-128T2-PCI Digital output PCI card 128ch (non-isolated 5VDC-TTL)
  • VCCI

Options

Expansion Accessory Module

Item Item Name
CM-32L Signal monitor Accessory for Digital I/O
CM-64L Signal monitor Accessory for Digital I/O

Cable

Item Item Name
PCA100P 100pin 0.8mm-pitch Connector to Open-Ended, Flat Cable
PCB10096PS 96pin 1.27mm Pitch Conversion Shield Cable for 100pin 0.8mm Pitch Connector
PCB100PS Both sides with connector shield cable for 100 pin 0.8mm pitch connectors
PCB100WS 37pin D-SUB x2 Distribution Shield Cable for 100pin 0.8mm Pitch Connector

Terminal

Item Item Name
DTP-3C General Purpose Terminal
DTP-4C Screw Terminal
DTP-64A Screw Terminal (M3 x 96)
EPD-100A Screw Terminal (M3 x 100)
EPD-37 Screw Terminal (M3.5 x 37)
EPD-96 Screw Terminal (M3.5 x 96)
EPD-96A Screw Terminal (M3 x 96)

Other Accessories

Item Item Name
CCB-96 Connector conversion card

Software Development Kit

Item Item Name
API-DIO(LNX) Linux version Digital I/O Driver
API-DIO(WDM) Windows Driver for Digital I/O Driver
API-TIMER(W32) Timer Driver

Extended Warranty Service

Item Item Name
ESP-F6 Extended warranty service package (6 years service course) (Japan only)
