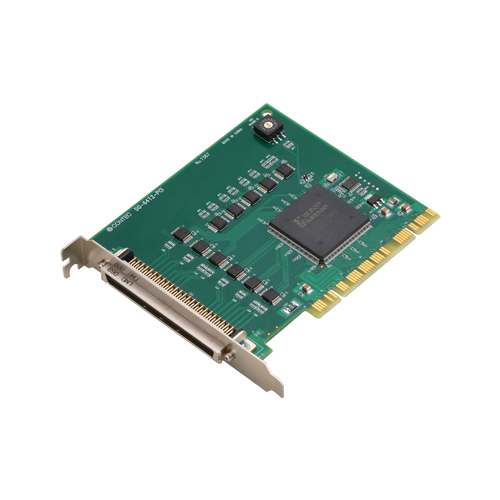

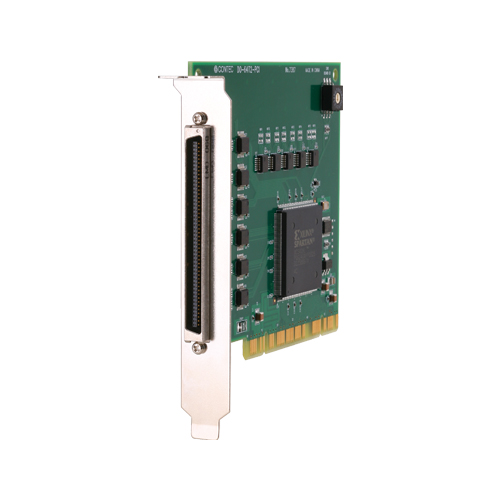

DO-64T2-PCI Digital output PCI card 64ch (non-isolated 5VDC-TTL)

  • Discontinued
  • Standard Warranty3 yrs
  • Extended WarrantyAvailable
  • モーダルで開く
  • モーダルで開く

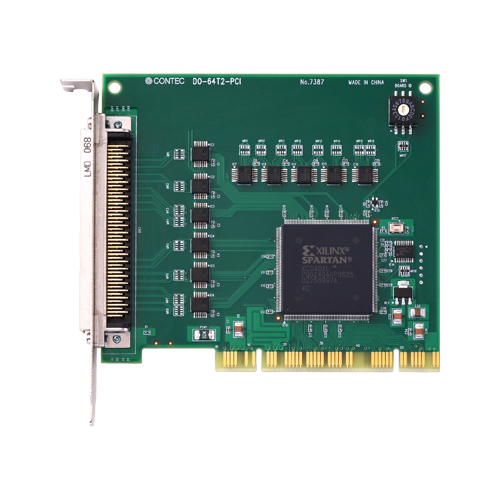

  • do-64t2-pci_up_rgb_96dpi_500x500モーダルで開く
  • End of Repair Service: 2019/06/28

Check a compatible replacement

* The end of repair date may change depending on the situation.

  • Unisolated open-collector output
  • Windows/Linux compatible driver libraries are attached
  • LabVIEW is supported by a plug-in of dedicated library VI-DAQ
  • *
    For details about an extended warranty, please contact us.

Overview / Features

This product is a PCI board designed for extending output function on your PC. DO-64T2-PCI is a type with 64 open-collector output channels. Windows/Linux driver is bundled with this product. Possible to be used as a data recording device for LabVIEW, with dedicated libraries.

  • Unisolated open-collector output
    • DO-64T2-PCI has the unisolated open collector outputs 64channels whose response speed is 200nsec. Output rating : max 30VDC, 40mA per pin.
  • Windows/Linux compatible driver libraries are attached
    • Using the attached driver library API-PAC(W32) makes it possible to create applications of Windows/Linux. In addition, a diagnostic program by which the operations of hardware can be checked is provided.
  • LabVIEW is supported by a plug-in of dedicated library VI-DAQ
    • Using the dedicated library VI-DAQ makes it possible to create each application for LabVIEW.
