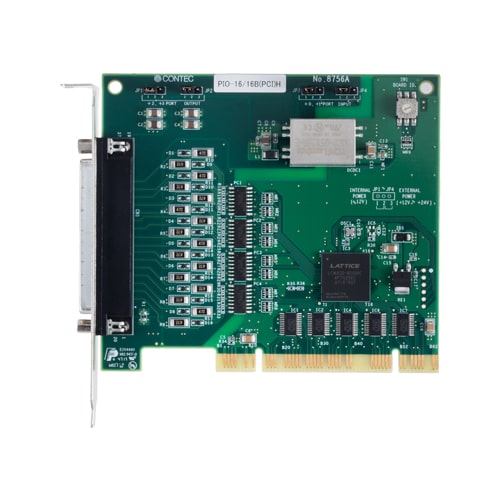

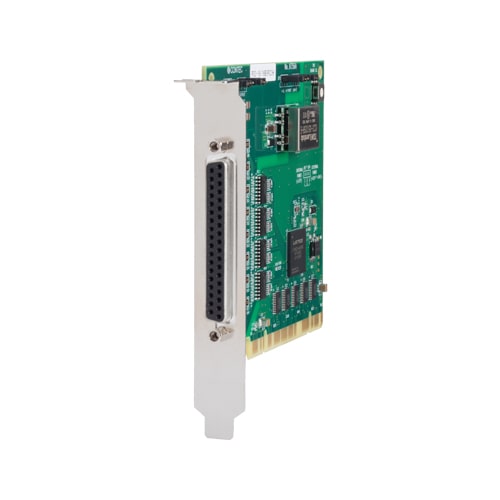

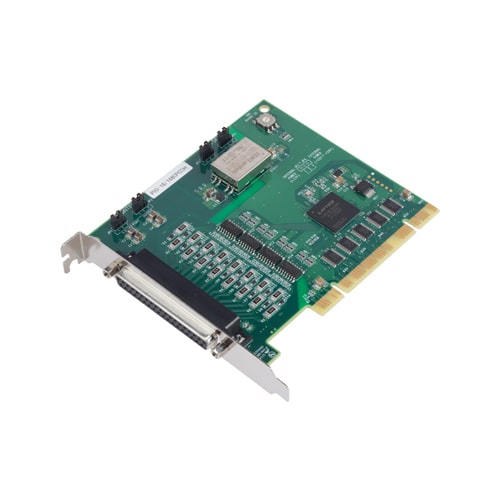

PIO-16/16B(PCI)H Digital I/O PCI card 16ch/16ch (12VDC on-board power supply isolated 12 - 24VDC)

Standard Warranty3 yrs
Extended WarrantyAvailable

All the input signals can be used as an interruption input. Moreover, the edge of the input signal can also generates interruption.
It has the digital filter function for preventing the incorrect input by the noise or the chatering.
The rating of an output signal is maximum DC35V and 100mA per point.
The power supply for a photo-coupler drive is built in. It can choose whether this built-in power supply is used or an external power supply is used.

*
For details about an extended warranty, please contact us.

Supported OS

Ordering Information

Ordering Information

Model	Description	Certification
PIO-16/16B(PCI)H	Digital I/O PCI card 16ch/16ch (12VDC on-board power supply isolated 12 - 24VDC)

Options

Device Drivers

Item	Item Name
API-DIO(98/PC)	Windows version Digital I/O Driver
API-DIO(LNX)	Linux version Digital I/O Driver
API-DIO(WDM)	Windows Driver for Digital I/O Driver
API-TIMER(W32)	Timer Driver
API-TIMER(WDM)	Windows Driver for Timer Driver
IO-LIB(WDM)	Windows General-purpose I/O Driver

Development Support Tools

Item	Item Name
ACX-PAC(W32)	ActiveX components sets for measurement system development
DAQ-DNC-FE	A collection of .NET components for DAQfast measurement system development.
DAQ-LV-WIN	LabVIEW Data Acquisition Library
VI-DAQ	VI Library of data acquisition for LabVIEW

Expansion Accessory Module

Item	Item Name
CM-32L	Signal monitor Accessory for Digital I/O

Cable

Item	Item Name
PCA37P	37pin D-type(M) to Open-Ended, Flat Cable
PCA37PS-P	A one end connector (Mold type) shield cable for 37 pin D-SUB connector
PCB37P	37pin D-type(M) at Each End, Flat Cable
PCB37PS-P	37pin D-type(M) at Each End, Shield Cable

Terminal

Item	Item Name
DTP-3C	General Purpose Terminal
DTP-4C	Screw Terminal
EPD-37	Screw Terminal (M3.5 x 37)

Extended Warranty Service

Item	Item Name
ESP-F6	Extended warranty service package (6 years service course) (Japan only)
