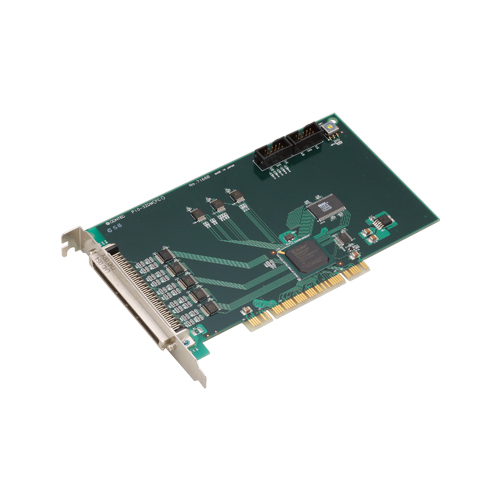

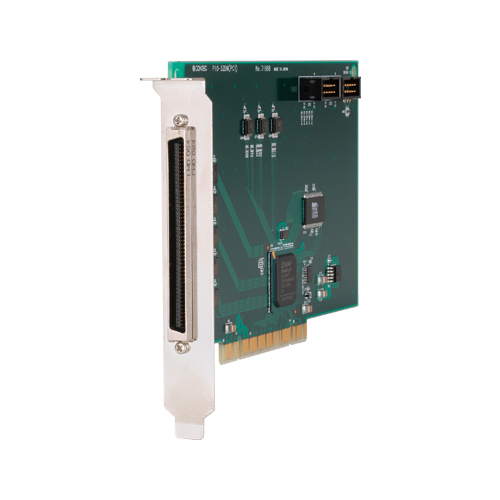

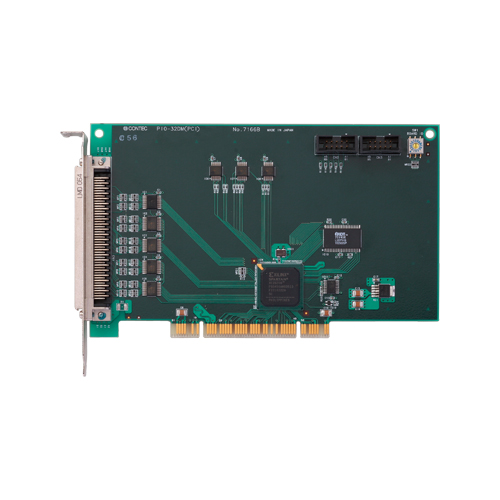

PIO-32DM(PCI) Digital I/O PCI card bi-directional 32ch (high-speed non-isolated 5VDC-TTL)

Standard Warranty3 yrs
Extended WarrantyAvailable

32 input-and-output point (selection of 32 inputs, 16 input and output each, and 32 outputs is possible)
When bus master transmission is used, continuation input and output of a series etc. are possible (a maximum of 20MHz).
A synchronous bus connector is used and two or more boards a simultaneous input / output are possible (synchronous cable standard appending).

*
For details about an extended warranty, please contact us.

Supported OS

Ordering Information

Ordering Information

Model	Description	Certification
PIO-32DM(PCI)	Digital I/O PCI card bi-directional 32ch (high-speed non-isolated 5VDC-TTL)

Options

Device Drivers

Item	Item Name
API-DIO(98/PC)	Windows version Digital I/O Driver
API-DIO(LNX)	Linux version Digital I/O Driver
API-DIO(WDM)	Windows Driver for Digital I/O Driver
API-TIMER(W32)	Timer Driver
API-TIMER(WDM)	Windows Driver for Timer Driver
IO-LIB(WDM)	Windows General-purpose I/O Driver

Development Support Tools

Item	Item Name
ACX-PAC(W32)	ActiveX components sets for measurement system development
DAQ-DNC-FE	A collection of .NET components for DAQfast measurement system development.
DAQ-LV-WIN	LabVIEW Data Acquisition Library

Applications

Item	Item Name
C-LogicDesigner	Windows version pattern generator / logic analyzer

Cable

Item	Item Name
PCA96P	A one end connector flat cable for 96 pin Half-Pitch connector
PCA96PS-P	A one end connector shield cable for 96 pin Half-Pitch connector (Mold type)
PCB96P	Flat Cable with Connectors on both sides for 96-pin Half Pitch Connectors
PCB96PS-P	Both sides with connector shield cable for 96 pin Half-Pitch connector(Mold type)

Terminal

Item	Item Name
DTP-64A	Screw Terminal (M3 x 96)
EPD-96	Screw Terminal (M3.5 x 96)
EPD-96A	Screw Terminal (M3 x 96)

Extended Warranty Service

Item	Item Name
ESP-F6	Extended warranty service package (6 years service course) (Japan only)
