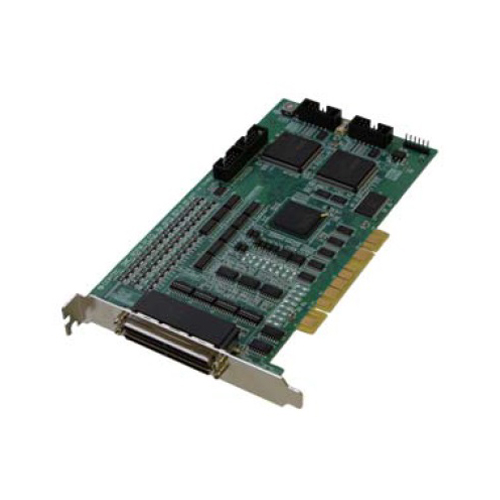

This product is a PCI board that supports stepping motors and (“pulse string input” types of) servomotors. This product can perform motor control for up to 4 axes. Multi-axis independent control and linear/circular interpolation control are performed via a motor driver unit. It can store positioning information for up to 1024 frames per axis and control multiple axes simultaneously. In addition, it can override speed/target positions during operation. Windows driver is bundled with this product. These various functions make it possible to build complex positioning control systems for variety of uses such as manufacturing devices and test devices.
Control for up to 4 axes and motor control pulse output up to 6.5Mpps are available. Command pulse for motor control supports common pulse, independent pulse and 90° phase difference pulse. Limit input 3channels/axis, general-purpose input 7channels/axis, and general-purpose output 3channels/axis are equipped. Also, depending on the software setting, 6 general-purpose inputs can be used as alarm inputs, and general-purpose outputs as deviation counter clear outputs.
Synchronization control of multi-axis simultaneous start/stop control, linear interpolation operation is available. Synchronization control of up to 16 boards (128 axes) is possible, when dedicated synchronization control cables are connected.
