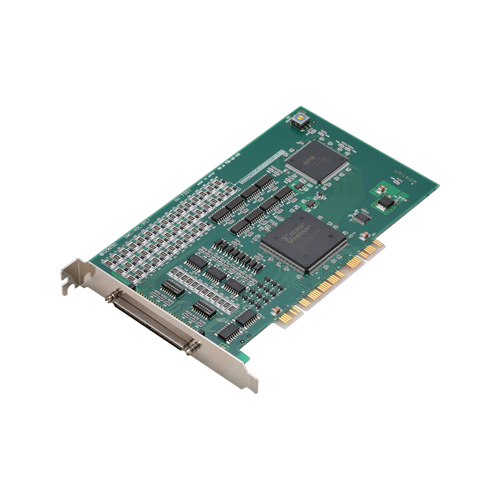

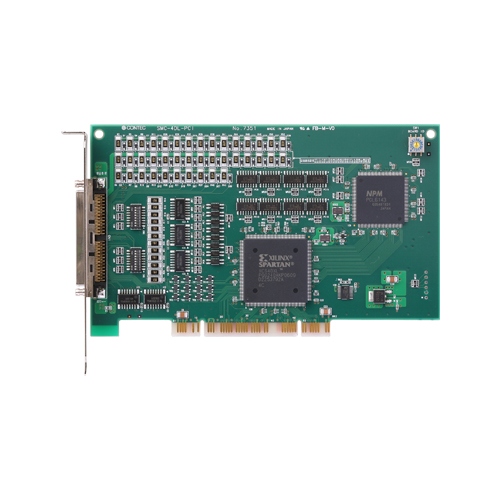

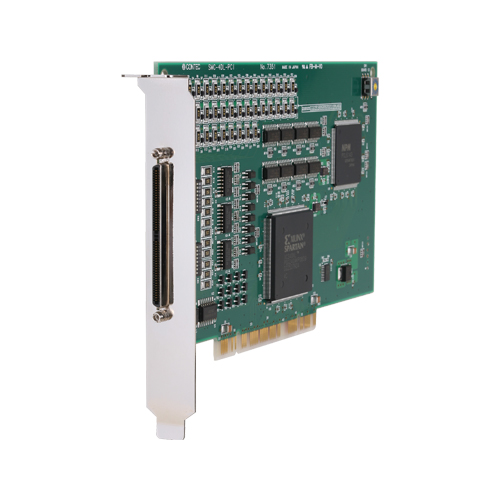

SMC-4DL-PCI High-speed line driver output 4 axis motion control board for PCI

  • Standard Warranty3 yrs
  • Extended WarrantyAvailable
  • Capable of multi-axis independent control and pulse output up to 9.8Mpps
  • Capable of controlling the jogging at fixed speed or by linear/S-curve acceleration and deceleration, positioning,and origin returning
  • Provided with various input/output formats enabling connection to an encoder input circuit as well as pulse output circuit
  • With the multi-axis synchronization control function,capable of aligning the timing for operation start and end
  • Capable of speed and position overriding
  • *
    For details about an extended warranty, please contact us.

Overview / Features

This product is a motion control board for PCI bus conformity that can position of a stepping motor and a servomotor(a pulse line input method). It is equipped with functions such as positioning, origin return, linear interpolation, and a S type accelerate and decelerate. And linear interpolation at multi-axes interval, overwriting of speed and position are possible. It has you use it by a wide use, such as a semiconductor production device, a tester, multi-axes robot or a X-Y robot.

  • Capable of multi-axis independent control and pulse output up to 9.8Mpps
    • Control for up to 4 axes and motor control pulse output up to 9.8Mpps are available.Command pulse for motor control supports common pulse, independent pulse and 90° phase difference pulse.Limit input 3channels/axis, general-purpose input 7channels/axis, and general-purpose output 3channels/axis are equipped. Also, depending on the software setting, 5general-purpose inputs can be used as alarm inputs, and general-purpose outputs as deviation counter clear outputs.
  • Capable of controlling the jogging at fixed speed or by linear/S-curve acceleration and deceleration, positioning,and origin returning
    • Carrying a motor control IC in the PCL6100 series from Nippon Pulse Motor Co., Ltd., capable of controlling jogging,positioning, origin returning, synchronization control and linear interpolation.
  • Provided with various input/output formats enabling connection to an encoder input circuit as well as pulse output circuit
    • Encoder input circuits can be connected with differential output,TTL level output, and open-collector output. Pulse output circuits can be connected with differential input, opto-coupler and TTL level input.
  • With the multi-axis synchronization control function,capable of aligning the timing for operation start and end
    • Synchronization control of multi-axis simultaneous start/stop control, linear interpolation operation is available.
  • Capable of speed and position overriding
    • Capable of changing the speed and target position during operation.
