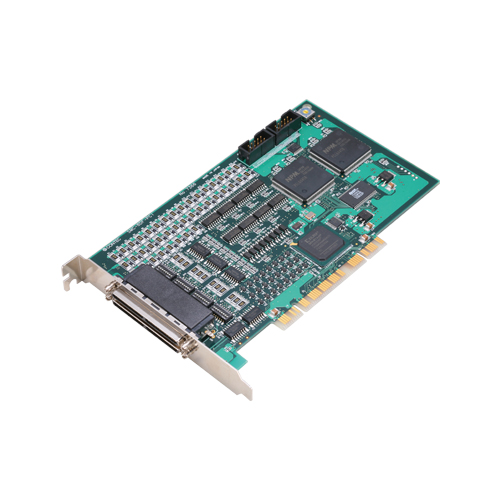

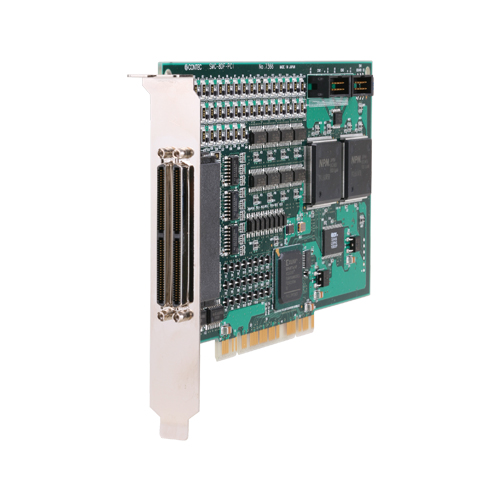

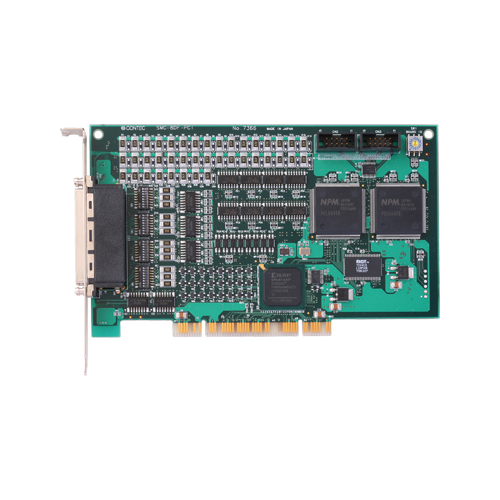

SMC-8DF-PCI 8 axes high-speed line driver output motion control board for PCI(high-performance version)

  • Discontinued
  • Standard Warranty3 yrs
  • Extended WarrantyAvailable
  • End of Repair Service: 2021/12/24

Check a compatible replacement

* The end of repair date may change depending on the situation.

  • Capable of multi-axis independent control and pulse
  • Capable of various control operations such as positioning,linear/circular interpolation, frame continuous operations,synchronization control, and so on
  • Provided with various input/output formats enabling connection to an encoder input circuit as well as pulse output circuit.
  • Capable of storing positioning information up to 1024 frames for each axis and control without extra CPU load.
  • *
    For details about an extended warranty, please contact us.

Ordering Information

Replacement Product

Model Definition
High-Speed Motion Control Board for PCI (8 axes)
SMC-8DF2-PCI
Upgrade product. The functions and I/O connectors are compatible. Please refer the manual for details.

Ordering Information

Model Description Certification
SMC-8DF-PCI 8 axes high-speed line driver output motion control board for PCI(high-performance version)
  • CE marking
  • VCCI

Options

Device Drivers

Item Item Name
API-SMC(WDM) Motion Control Driver
API-TIMER(W32) Timer Driver

Cable

Item Item Name
PCA100P 100pin 0.8mm-pitch Connector to Open-Ended, Flat Cable
PCB100PS Both sides with connector shield cable for 100 pin 0.8mm pitch connectors

Terminal

Item Item Name
EPD-100A Screw Terminal (M3 x 100)

Other Accessories

Item Item Name
CCB-SMC2 Conversion terminal for SMC series

Extended Warranty Service

Item Item Name
ESP-F6 Extended warranty service package (6 years service course) (Japan only)
