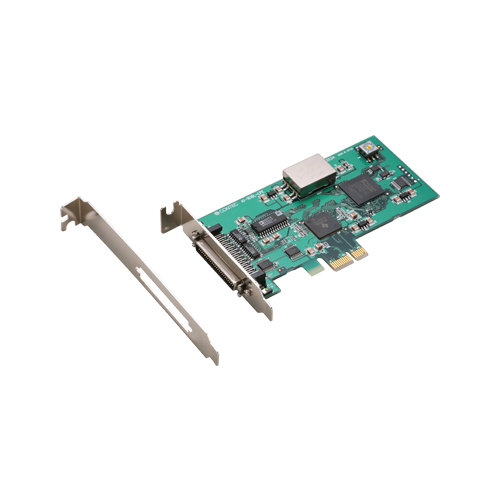

AI-1616L-LPE Analog Input Low Profile PCI Express Card /16ch AI(16bit 100ks/s) / 1ch Counter - Multifunction DAQ L Series

Standard Warranty3 yrs
Extended WarrantyAvailable

Multi-function
Analog I/O can be synchronized with an internal timer or external clock
Buffer memory available for background processing independent of software
Software-based calibration function
Filter function for easy connection of external signals

*
For details about an extended warranty, please contact us.

Specifications

Add-on Module

Series	Analog L(Low-cost&Multi-function)
Bus Specification	PCI Express
Size	Low Profile
Used Connector	Miniature ribbon 50-pin

Analog I/O

Input Channels	Single-ended 16-ch
Input Range	±10V
ADC Resolution	16-bit
Sampling Rate	10μsec/ch (max.)
Input Buffer Memory	1k Word
Output Channels	-
Output Range	-
DAC Resolution	-
Update rate	-
Output Buffer Memory

Digital I/O

Input Channels	4-ch
Output Channels	4-ch
Bi-directional I/O Channels	-
Response Time (Input)	200nsec (max.)
Response Time (Output)	200nsec (max.)
Operating Voltage (Input)	3.3VDC-LVTTL
Operating Voltage (Output)	3.3VDC-LVTTL
Input Circuit	Non-isolated LVTTL level input (Positive logic)
Output Circuit	Non-isolatedLVTTL level output (Positive logic)
Built-in Power Supply	-

Counter

Number of Channels	1-ch
Counting System	32-bit Up count
Response speed	10MHz

Supported OS

Supported OS	Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux

Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux

*
The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.
