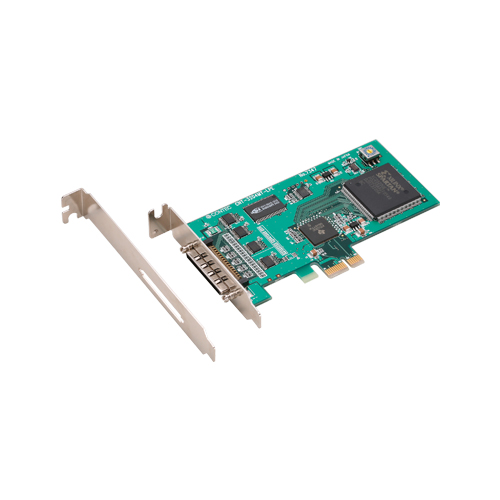

CNT-3204MT-LPE Counter Low Profile PCI Express card 4ch (32bit Up/Down count 10MHz) / Incremental encoder interface

  • Standard Warranty3 yrs
  • Extended WarrantyAvailable
  • It can converted into differential input interface by using differential unit [CTP-4D] and connection cable [CNT-68M/50M] sold separately.
  • It puts one point of control signal for each channel (counter start/ stop and pre-sets).
  • It can sample a count value in sampling rate of 20MHz at the maximum. In addition, high-speed data transmission between a card and PCs are possible without hanging load to CPU by Bus master teansfer function.
  • In according with the arbitrary value that a count value set, Outbreak of interrupt, the output of an outside signal, pre-set and zero clear of a count value are possible.
  • *
    For details about an extended warranty, please contact us.

Ordering Information

Ordering Information

Model Description / Certification
CNT-3204MT-LPE Counter Low Profile PCI Express card 4ch (32bit Up/Down count 10MHz) / Incremental encoder interface
  • VCCI
  • CE marking

Options

Expansion Accessory Module

Item Item Name
CTP-4D Termination Panel with Differential Receivers for Counter Input

Cable

Item Item Name
CNT-68M/50M Shield Cable for Counter Input Card for CardBus
PCA68PS-P 68pin 0.8mm Pitch Connector to Open-Ended, Shield Cable
PCB68PS-P Both sides with connector shield cable for 68 pin 0.8mm pitch connectors

Terminal

Item Item Name
EPD-50A Screw Terminal (M3 x 50)
EPD-68A Screw Terminal (M3 x 68)

Software Development Kit

Item Item Name
ACX-PAC(W32) ActiveX components sets for measurement system development
API-CNT(WDM) Windows Driver for Counter Input Driver
API-TIMER(W32) Timer Driver

Extended Warranty Service

Item Item Name
ESP-F6 Extended warranty service package (6 years service course) (Japan only)
