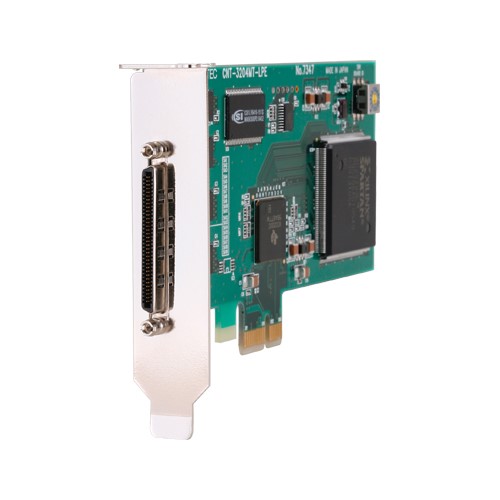

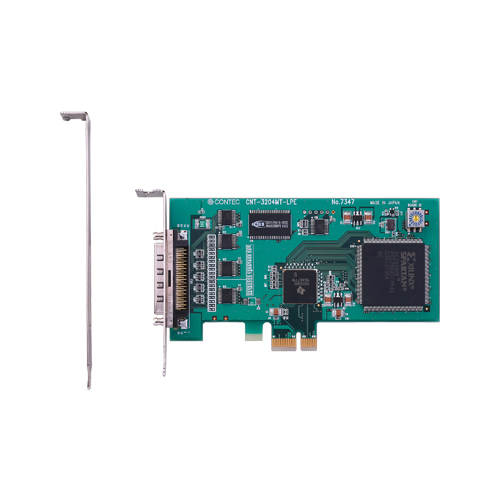

CNT-3204MT-LPE Counter Low Profile PCI Express card 4ch (32bit Up/Down count 10MHz) / Incremental encoder interface

  • Standard Warranty3 yrs
  • Extended WarrantyAvailable
  • cnt-3204mt-lpe_rgb_96dpi_500x500モーダルで開く
  • cnt-3204mt-lpe_conn_rgb_96dpi_500x500モーダルで開く
  • cnt-3204mt-lpe_up_rgb_96dpi_500x500モーダルで開く
  • It can converted into differential input interface by using differential unit [CTP-4D] and connection cable [CNT-68M/50M] sold separately.
  • It puts one point of control signal for each channel (counter start/ stop and pre-sets).
  • It can sample a count value in sampling rate of 20MHz at the maximum. In addition, high-speed data transmission between a card and PCs are possible without hanging load to CPU by Bus master teansfer function.
  • In according with the arbitrary value that a count value set, Outbreak of interrupt, the output of an outside signal, pre-set and zero clear of a count value are possible.
  • *
    For details about an extended warranty, please contact us.

Overview / Features

It is an interface card for PCI Express bus conformity. it can count a pulse signal from an outside device input. 32 bits up/down counter has 4 channel. It is connected to a rotary encoder, a linear scale and can use it. Input interface of a pulse signal is the Non-isolated LVTTL level input that can input a high-speed pulse signal. The high-speed data transmission between A card and PCs are possible by bus master transfer. Attachment Windows version driver(API-PAC(W32)).

  • It can converted into differential input interface by using differential unit [CTP-4D] and connection cable [CNT-68M/50M] sold separately.
  • It puts one point of control signal for each channel (counter start/ stop and pre-sets).
  • It can sample a count value in sampling rate of 20MHz at the maximum. In addition, high-speed data transmission between a card and PCs are possible without hanging load to CPU by Bus master teansfer function.
  • In according with the arbitrary value that a count value set, Outbreak of interrupt, the output of an outside signal, pre-set and zero clear of a count value are possible.
