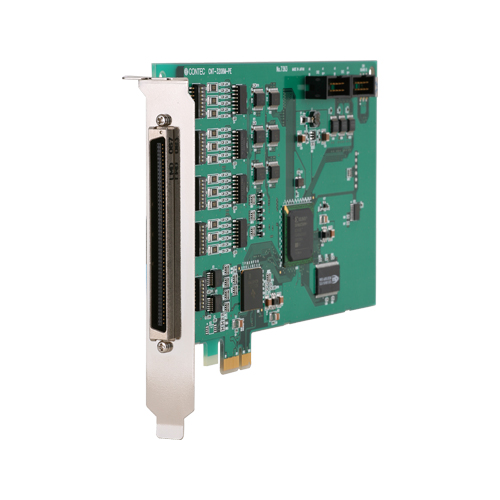

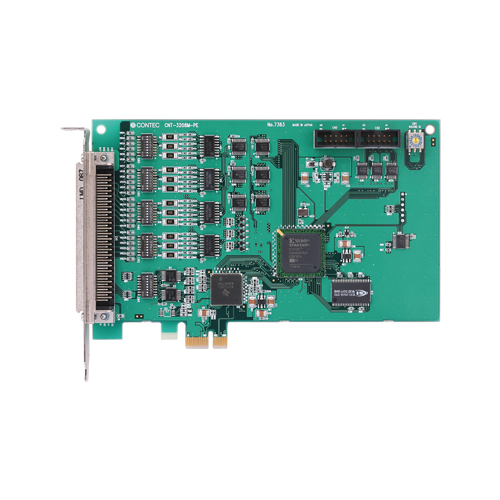

CNT-3208M-PE Counter PCI Express card 8ch (32bit Up/Down count 10MHz) / Incremental encoder interface

  • Standard Warranty3 yrs
  • Extended WarrantyAvailable
  • 8ch 32-bit up/down counter, high speed pulse input of 10MHz, and disconnection detection are available.
  • Bus master transfer function is provided.
  • Digital filter function to prevent wrong recognition of input signals due to noises is provided.
  • Windows compatible driver libraries are attached.
  • The synchronization control connectors are provided
  • Functions and connectors are compatible with PCI compatible board CNT32-8M(PCI).
  • *
    For details about an extended warranty, please contact us.

Ordering Information

Ordering Information

Model Description / Certification
CNT-3208M-PE Counter PCI Express card 8ch (32bit Up/Down count 10MHz) / Incremental encoder interface
  • CE marking

Options

Cable

Item Item Name
PCA96P A one end connector flat cable for 96 pin Half-Pitch connector
PCA96PS-P A one end connector shield cable for 96 pin Half-Pitch connector (Mold type)
PCB96P Flat Cable with Connectors on both sides for 96-pin Half Pitch Connectors
PCB96PS-P Both sides with connector shield cable for 68 pin 0.8mm pitch connectors

Terminal

Item Item Name
DTP-64A Screw Terminal (M3 x 96)
EPD-96 Screw Terminal (M3.5 x 96)
EPD-96A Screw Terminal (M3 x 96)

Software Development Kit

Item Item Name
ACX-PAC(W32) ActiveX components sets for measurement system development of analog input and output
API-CNT(WDM) Windows Driver for Counter Input Driver
API-TIMER(W32) Timer Driver

Extended Warranty Service

Item Item Name
ESP-F6 Extended warranty service package (6 years service course)
