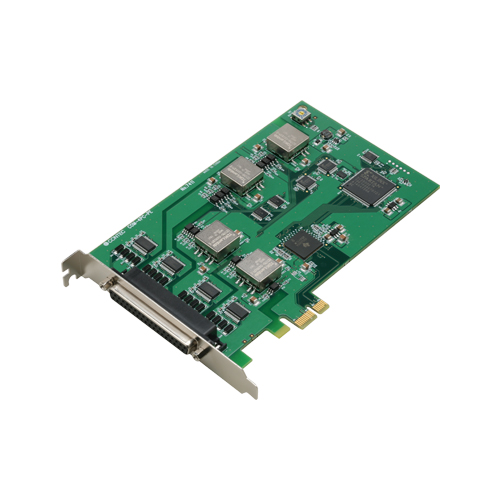

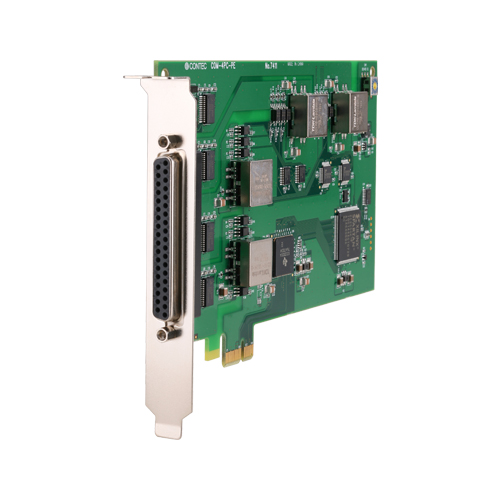

COM-4PC-PE Serial Communication PCI Express Card RS-232C 4ch / Isolation and Surge Protection

  • Standard Warranty3 yrs
  • Extended WarrantyAvailable
  • Max. 921,600bps RS-232C Serial Communication
  • Possibly used as Windows, Linux-standard COM ports, using the bundled driver software
  • Isolation between channels and between PCs, surge protection for all signal lines
  • Max. 16 boards can be installed as configured in the range COM1 - COM256.
  • Each channel is equipped with separate 128-byte FIFO buffers for transmit and receive.
  • *
    For details about an extended warranty, please contact us.

Ordering Information

Ordering Information

Model Description / Certification
COM-4PC-PE Serial Communication PCI Express Card RS-232C 4ch / Isolation and Surge Protection
  • CE marking

Options

Cable

Item Item Name
PCE37/25PS Divider Shield cable, D-SUB37pin -> 25pin x4 (0.25m)
PCE37/9PS Divider Shield cable, D-SUB37pin -> 9pin x4 (0.25m)
RSC-9F Cross Cable, RS-232C D-SUB9P(1.8m)
RSS-25F/9M Straight Cable for Connector Conversion, RS-232C(25F -> 9M, 1.8m)
RSS-25M/9F Straight cable for Connector Conversion, RS-232C(25M -> 9F, 1.8m)
RSS-25M/F Straight Cable, RS-232C D-SUB25P(1.8m)
RSS-9M/F Straight Cable, RS-232C D-SUB9P(1.8m)

Software Development Kit

Item Item Name
API-SIO(98/PC) Serial Communication Driver

Extended Warranty Service

Item Item Name
ESP-F6 Extended warranty service package (6 years service course)
