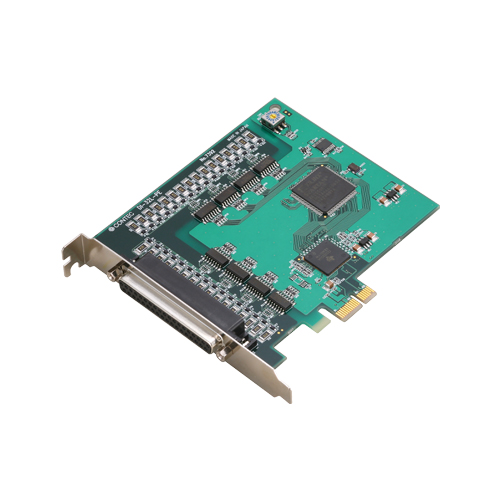

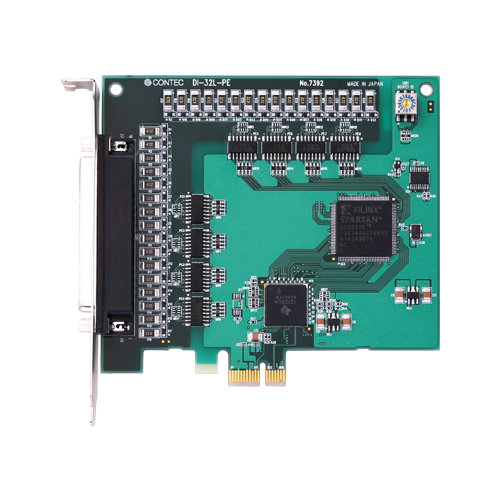

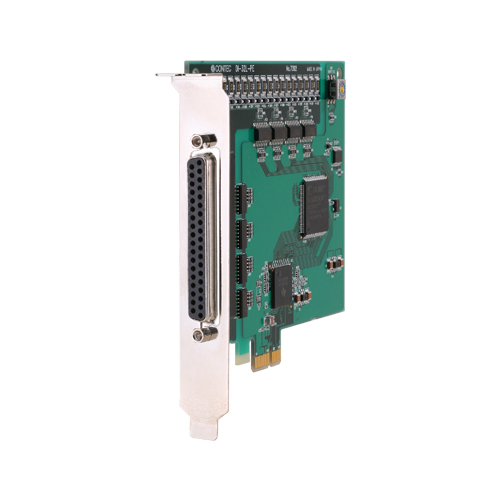

DI-32L-PE Digital input PCI Express card 32ch (isolated 12 - 24VDC)

Standard Warranty3 yrs
Extended WarrantyAvailable

Opto-coupler isolated input (supporting current sink output) and opto-coupler isolated open-collector output (current sink type)
Opto-coupler bus isolation
You can use all of the input signals as interrupt events.
Windows/Linux support device driver
This product has a digital filter to prevent input signals from carrying noise or a chattering.
Output circuits include zener diodes for surge voltage protection and overcurrent protection circuit.

*
For details about an extended warranty, please contact us.

Supported OS

Ordering Information

Ordering Information

Model	Description	Certification
DI-32L-PE	Digital input PCI Express card 32ch (isolated 12 - 24VDC)

Options

Device Drivers

Item	Item Name
API-DIO(LNX)	Linux version Digital I/O Driver
API-DIO(WDM)	Windows Driver for Digital I/O Driver
API-TIMER(W32)	Timer Driver

Development Support Tools

Item	Item Name
ACX-PAC(W32)	ActiveX components sets for measurement system development
DAQ-DNC-FE	A collection of .NET components for DAQfast measurement system development.
DAQ-LV-WIN	LabVIEW Data Acquisition Library

Expansion Accessory Module

Item	Item Name
CM-32L	Signal monitor Accessory for Digital I/O

Cable

Item	Item Name
PCA37P	37pin D-type(M) to Open-Ended, Flat Cable
PCA37PS-P	A one end connector (Mold type) shield cable for 37 pin D-SUB connector
PCB37P	37pin D-type(M) at Each End, Flat Cable
PCB37PS-P	37pin D-type(M) at Each End, Shield Cable

Terminal

Item	Item Name
DTP-3C	General Purpose Terminal
DTP-4C	Screw Terminal
EPD-37	Screw Terminal (M3.5 x 37)

Extended Warranty Service

Item	Item Name
ESP-F6	Extended warranty service package (6 years service course) (Japan only)
