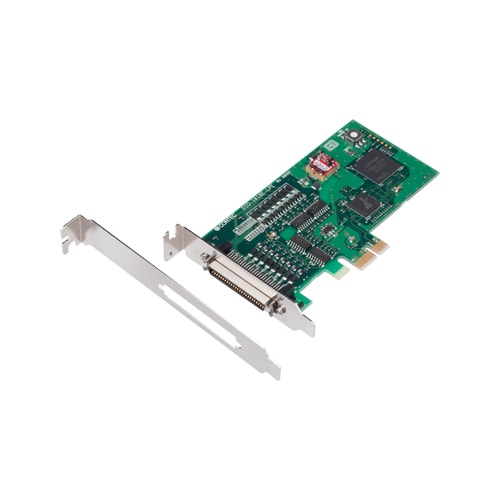

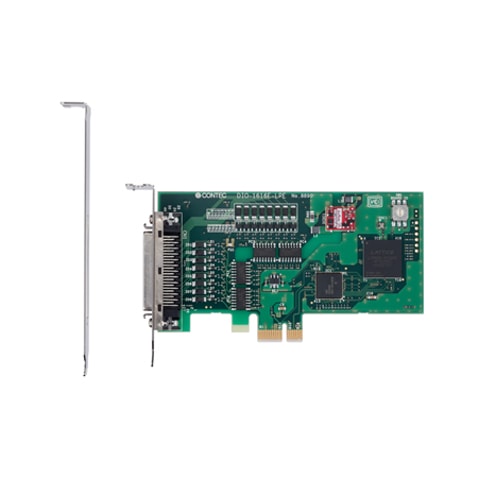

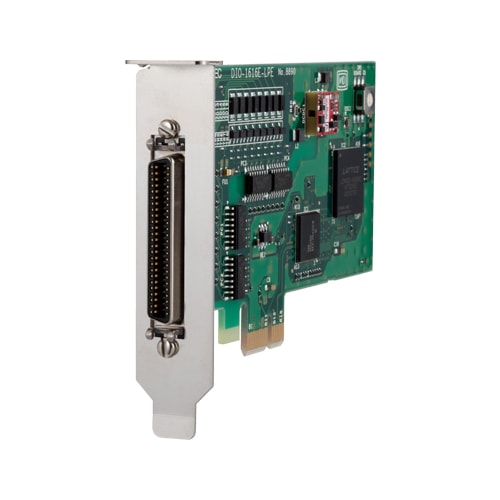

This product is a PCI Express bus-compliant interface board that extends the digital signal I/O functions of a PC. This product has opto-coupler isolated input 16ch and opto-coupler isolated open-collector output 16ch and can input and output a wide range signals (5 - 36VDC). You can use all of the input signals as interrupt inputs. Equipped with the digital filter function and protection circuit (surge voltage protection and overcurrent protection). This product supports a Low Profile size slot and if replaced with the supplied bracket, supports a standard size slot, too.
Windows/Linux driver is supported with this product. Using the dedicated library DAQfast makes it possible to create each application for LabVIEW.
