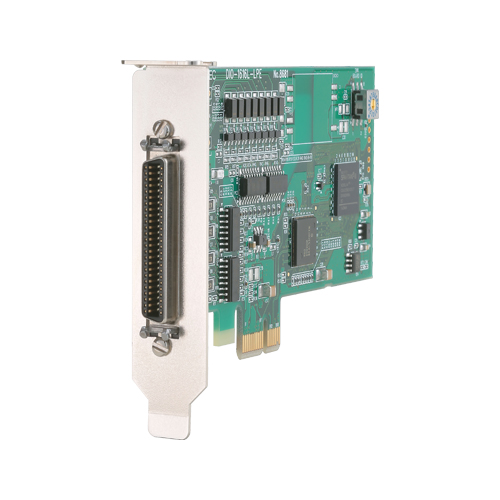

DIO-1616L-LPE Digital I/O Low Profile PCI Express card 16ch/16ch (isolated 12 - 24VDC)

  • Standard Warranty3 yrs
  • Extended WarrantyAvailable
  • モーダルで開く
  • モーダルで開く

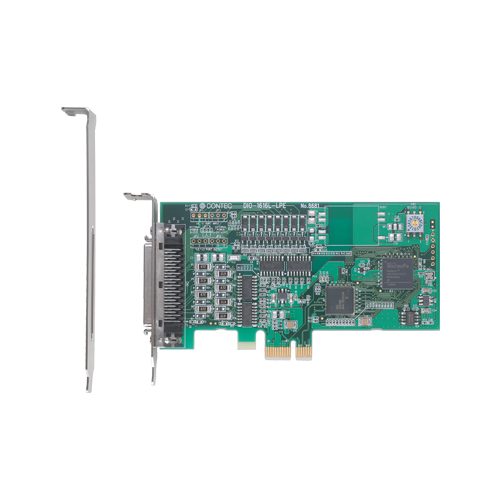

  • dio-1616l-lpe_up_rgb_96dpi_500x500モーダルで開く
  • Opto-coupler isolated input (supporting current sink output) and opto-coupler isolated open-collector output (current sink type)
  • Opto-coupler bus isolation
  • You can use all of the input signals as interrupt events
  • Windows/Linux support device driver
  • This product has a digital filter to prevent input signals from carrying noise or a chattering
  • Functions are compatible with PCI Express compatible board DIO-1616L-PE and PCI compatible board PIO-16/16L(PCI)H.
  • *
    For details about an extended warranty, please contact us.

Ordering Information

Ordering Information

Model Description Certification
DIO-1616L-LPE Digital I/O Low Profile PCI Express card 16ch/16ch (isolated 12 - 24VDC)
  • CE marking
  • VCCI

Options

Device Drivers

Item Item Name
API-DIO(LNX) Linux version Digital I/O Driver
API-DIO(WDM) Windows Driver for Digital I/O Driver

Development Support Tools

Item Item Name
DAQ-DNC-FE A collection of .NET components for DAQfast measurement system development.
DAQ-LV-WIN LabVIEW Data Acquisition Library

Expansion Accessory Module

Item Item Name
CM-32L Signal monitor Accessory for Digital I/O

Cable

Item Item Name
PCA50PS-P 50pin miniature ribbon connector to Open-Ended, Shield Cable (Mold type)
PCB50PS-P Both sides with connector shield cable for 50pin miniature ribbon connectors
PCE50/37PS-0.5P 50 pin miniature ribbon --> 37 pin D-SUB conversion shield cables(Mold type, 0.5m)

Terminal

Item Item Name
DTP-3C General Purpose Terminal
DTP-4C Screw Terminal
EPD-37 Screw Terminal (M3.5 x 37)
EPD-37A Screw Terminal (M3 x 37)
EPD-50A Screw Terminal (M3 x 50)
