DIO-1616L-PE Digital I/O PCI Express card 16ch/16ch (isolated 12 - 24VDC)

• Overview / Features
• Specifications
• Ordering Information
• Support / Downloads

Overview / Features

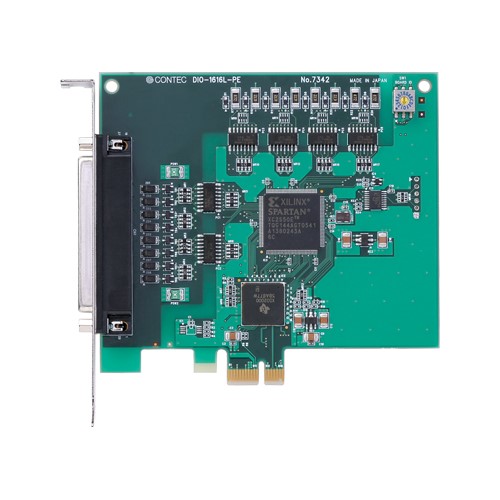

This product is a PCI Express bus-compliant interface card that extends the digital signal I/O functions of a PC. DIO-1616L-PE is a 12 - 24VDC opto-coupler isolated type with opto-coupler isolated input 16ch and opto-coupler isolated open-collector output 16ch. You can use all of the input signals as interrupt inputs. Equipped with the digital filter function and output transistor protection circuit (surge voltage protection and over current protection).Windows/Linux driver is bundled with this product.

• Opto-coupler isolated input (supporting current sink output) and opto-coupler isolated open-collector output (current sink type)

  • DIO-1616L-PE has the opto-coupler isolated input 16ch (supporting current sink output) whose response speed is 200μsec and opto-coupler isolated open-collector output 16ch (current sink type).Common terminal provided per 16ch, capable of supporting a different external power supply Supporting driver voltages of 12 - 24 VDC for I/O
• Opto-coupler bus isolation

  • As the PCI Express bus (PC) is isolated from the input and output interfaces by opto-couplers, this product has excellent noise immunity.
• You can use all of the input signals as interrupt events.

  • You can use all of the input signals as interrupt events and also disable or enable the interrupt in bit units and select the interrupt edge.
• Windows/Linux compatible driver libraries are attached.

  • Using the attached driver library API-PAC(W32) makes it possible to create applications of Windows/Linux. In addition, a diagnostic program by which the operations of hardware can be checked is provided.
• This product has a digital filter to prevent input signals from carrying noise or a chattering.

  • This product has a digital filter to prevent input signals from carrying noise or a chattering. All input terminals can be added a digital filter, and the setting can be performed by software.
• Output circuits include zener diodes for surge voltage protection and overcurrent protection circuit.

  • Zener diodes are connected to the output circuits to protect against surge voltages. Similarly, overcurrent protection circuits are fitted to each group of 8ch outputs.
