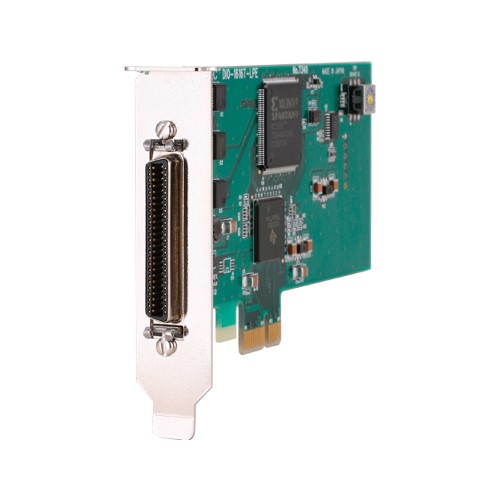

DIO-1616T-LPE Digital I/O Low Profile PCI Express card 16ch/16ch (non-isolated 5VDC-TTL)

Standard Warranty3 yrs
Extended WarrantyAvailable

Unisolated open collector output x 16 channels. Unisolated TTL-level (positive logic) input/output enabling fast response (within 200nsec)
You can use all of the input signals as interrupt events and also disable or enable the interrupt in bit units and select the interrupt edge.
The rated output signal is up to 30VDC, 40mA per one signal.

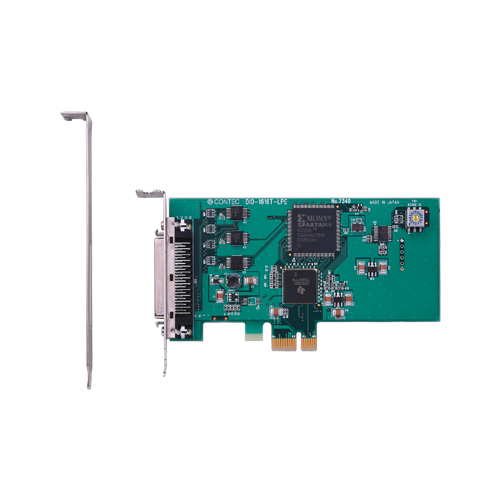

Support for both of low-profile and standard size slots (interchangeable with a bundled bracket)
Equipped with the same function as the PCI card PIO-16/16T(LPCI)H. The connector shape and the signal assignment for the connector is compatible with PIO-16/16T(LPCI)H.

*
For details about an extended warranty, please contact us.

BUY NOW - U.S. Customers can purchase online in the Contec Americas eShop

Specifications

Add-on Module

Series
Bus Specification	PCI Express
Size	Low Profile
Used Connector	Miniature ribbon 50-pin

Digital I/O

Input Channels	16-ch
Output Channels	16-ch
Bi-directional I/O Channels	-
Response Time (Input)	200nsec (max.)
Response Time (Output)	200nsec (max.)
Operating Voltage (Input)	5VDC-TTL
Operating Voltage (Output)	5VDC-TTL
Input Circuit	Non-isolated TTL level input (Negative logic)
Output Circuit	Non-isolated TTL open-collector output (Negative logic)
Built-in Power Supply	-

Supported OS

Supported OS	Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2022; Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux

Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2022; Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux

*
The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.
