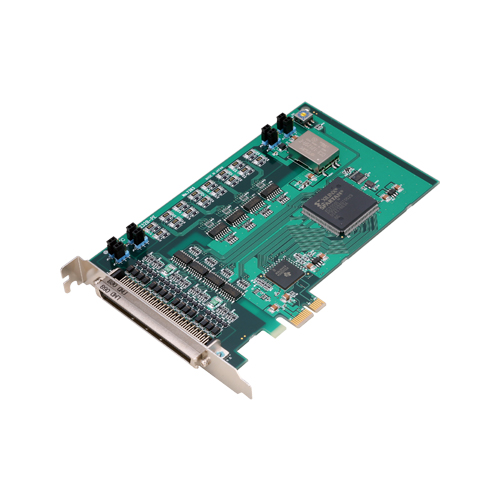

DIO-3232B-PE Digital I/O PCI Express card 32ch/32ch (12VDC on-board power supply isolated 12 - 24VDC)

Opto-coupler isolated input (supporting current sink output) and opto-coupler isolated open-collector output (current sink type)
Opto-coupler bus isolation
Power supply (12VDC 240mA) for driving opto-coupler
You can use all of the input signals as interrupt request signals.
The output circuit, has a built-in Zener diode and the overcurrent protection circuit of the surge voltage protection.
Windows/Linux support device driver
