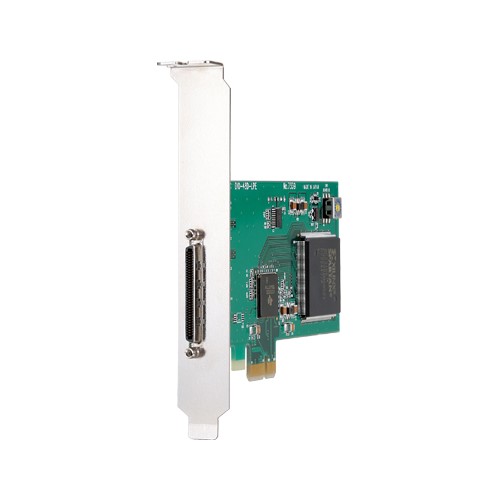

DIO-48D-LPE Digital I/O Low Profile PCI Express card bi-directional 48ch (non-isolated 3VDC-LVTTL)

  • Standard Warranty3 yrs
  • Extended WarrantyAvailable
  • This product can be used to input/output 48 points bi-directional digital corresponding to the i8255 mode 0. Unisolated LVTTL-level (positive logic) input/output enabling fast response (within 200nsec).
  • You can use all of the input signals (Max. 48) as interrupt inputs. You can also disable or enable the interrupt in bit units and select the interrupt edge.
  • This product has a digital filter to prevent input signals from carrying noise or a chattering. This product has a digital filter to prevent input signals from carrying noise or a chattering. All input channels can be added a digital filter, and the setting can be performed by software.
  • Application software enabling the switching of input and output settings

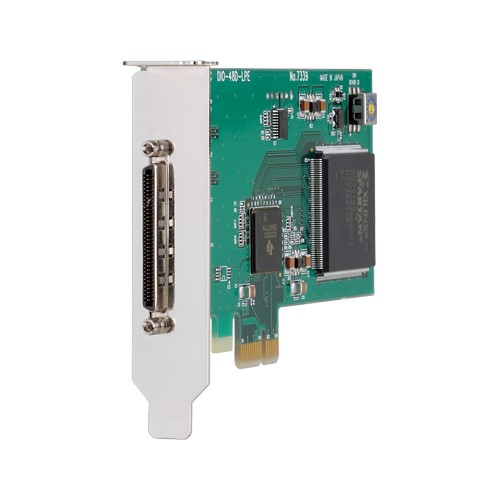

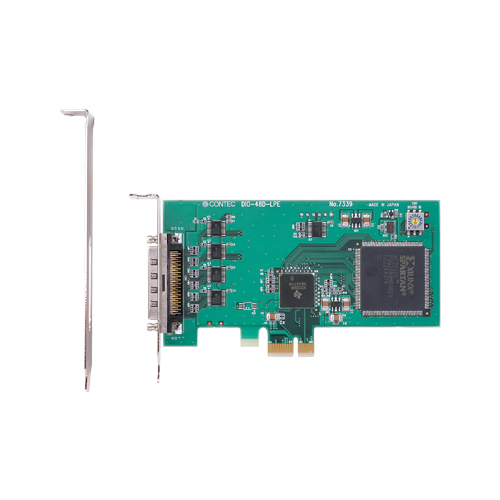

  • Support for both of low-profile and standard size slots (interchangeable with a bundled bracket)
  • *
    For details about an extended warranty, please contact us.

Ordering Information

Ordering Information

Model Description / Certification
DIO-48D-LPE Digital I/O Low Profile PCI Express card bi-directional 48ch (non-isolated 3VDC-LVTTL)
  • CE marking
  • VCCI

Options

Cable

Item Item Name
DIO-68M/96F Shielded Cable for Digital I/O Card for CardBus (0.5m)
PCA68PS-P 68pin 0.8mm Pitch Connector to Open-Ended, Shield Cable
PCB68PS-P Both sides with connector shield cable for 68 pin 0.8mm pitch connectors

Terminal

Item Item Name
DTP-64A Screw Terminal (M3 x 96)
EPD-68A Screw Terminal (M3 x 68)
EPD-96 Screw Terminal (M3.5 x 96)

Software Development Kit

Item Item Name
ACX-PAC(W32) ActiveX components sets for measurement system development
API-DIO(LNX) Linux version Digital I/O Driver
API-DIO(WDM) Windows Driver for Digital I/O Driver
API-TIMER(W32) Timer Driver
API-TIMER(WDM) Windows Driver for Timer Driver
IO-LIB(WDM) Windows General-purpose I/O Driver

Library Software

Item Item Name
VI-DAQ VI Library of data acquisition for LabVIEW

Extended Warranty Service

Item Item Name
ESP-F6 Extended warranty service package (6 years service course) (Japan only)
