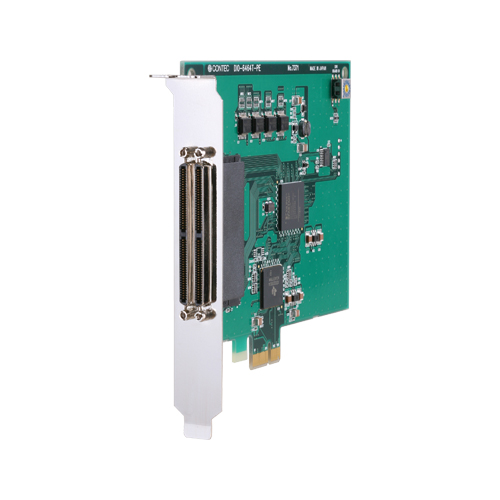

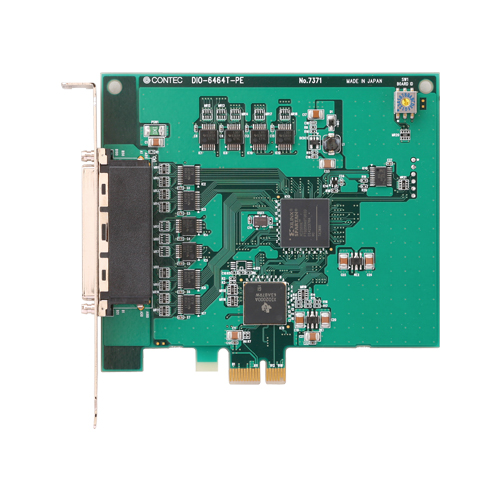

DIO-6464T-PE Digital I/O PCI Express card 64ch/64ch (non-isolated 5VDC-TTL)

Standard Warranty3 yrs
Extended WarrantyAvailable

Unisolated TTL level input, unisolated open-collector output
You can use 16 input signals as interrupt request signals.
Windows/Linux compatible driver libraries are attached.
Functions and connectors are compatible with PCI compatible card DIO-6464T2-PCI
LabVIEW is supported by a plug-in of dedicated library VI-DAQ.

*
For details about an extended warranty, please contact us.

Supported OS

Ordering Information

Ordering Information

Model	Description	Certification
DIO-6464T-PE	Digital I/O PCI Express card 64ch/64ch (non-isolated 5VDC-TTL)

Options

Device Drivers

Item	Item Name
API-DIO(LNX)	Linux version Digital I/O Driver
API-DIO(WDM)	Windows Driver for Digital I/O Driver
API-TIMER(W32)	Timer Driver

Development Support Tools

Item	Item Name
ACX-PAC(W32)	ActiveX components sets for measurement system development
DAQ-DNC-FE	A collection of .NET components for DAQfast measurement system development.
DAQ-LV-WIN	LabVIEW Data Acquisition Library

Expansion Accessory Module

Item	Item Name
CM-64L	Signal monitor Accessory for Digital I/O

Cable

Item	Item Name
PCA100P	100pin 0.8mm-pitch Connector to Open-Ended, Flat Cable
PCB10096PS	96pin 1.27mm Pitch Conversion Shield Cable for 100pin 0.8mm Pitch Connector
PCB100PS	Both sides with connector shield cable for 100 pin 0.8mm pitch connectors
PCB100WS	37pin D-SUB x2 Distribution Shield Cable for 100pin 0.8mm Pitch Connector

Terminal

Item	Item Name
DTP-3C	General Purpose Terminal
DTP-4C	Screw Terminal
DTP-64A	Screw Terminal (M3 x 96)
EPD-100A	Screw Terminal (M3 x 100)
EPD-37	Screw Terminal (M3.5 x 37)
EPD-96	Screw Terminal (M3.5 x 96)
EPD-96A	Screw Terminal (M3 x 96)

Other Accessories

Item	Item Name
CCB-96	Connector conversion card

Extended Warranty Service

Item	Item Name
ESP-F6	Extended warranty service package (6 years service course) (Japan only)
