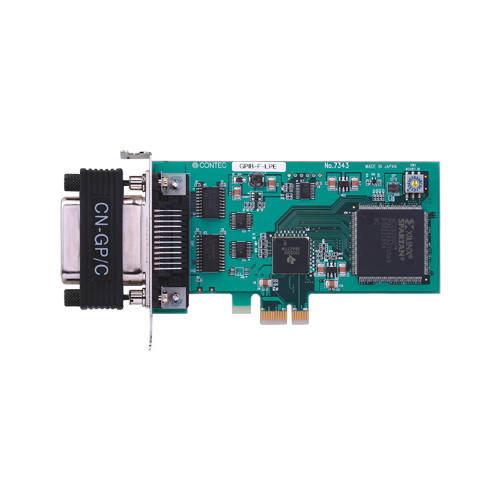

GPIB-F-LPE High-performance & High-speed GPIB Interface Board(Low Profile Size) for PCI Express

  • Standard Warranty3 yrs
  • Extended WarrantyAvailable
  • Complies with the IEEE-488.2 standard
  • Data transfer speed 1.5Mbyte/sec max.
  • Supports bus master operation
  • Internal 2Kbyte FIFO buffers for send and receive
  • Built-in GPIB bus analyzer function [only GPIB-F-LPE]
  • Built-in SPAS event function
  • *
    For details about an extended warranty, please contact us.

Ordering Information

Ordering Information

Model Description / Certification
GPIB-F-LPE High-performance & High-speed GPIB Interface Board(Low Profile Size) for PCI Express
  • CE marking

Options

Cable

Item Item Name
PCN-T02 GPIB Cable (2m)
PCN-T04 GPIB Cable (4m)

Other Accessories

Item Item Name
CN-GP/C GPIB Counter Adapter

Software Development Kit

Item Item Name
ACX-PAC(W32) ActiveX components sets for measurement system development of analog input and output
API-GPIB(LNX) Linux Driver for GPIB
API-GPLV(W32) Windows version LabVIEW GPIB Communication Driver
API-TIMER(W32) Timer Driver

Extended Warranty Service

Item Item Name
ESP-F6 Extended warranty service package (6 years service course)
