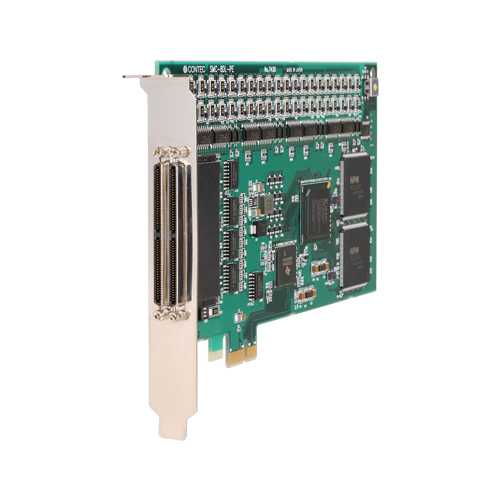

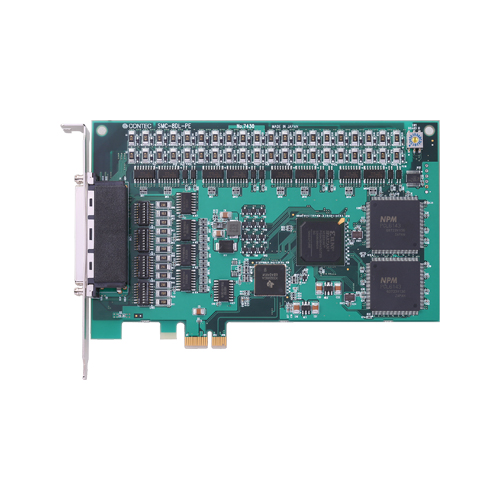

SMC-8DL-PE High-speed line driver output 8-Axis Motion Controller Card for PCI Express

Standard Warranty3 yrs
Extended WarrantyAvailable

Capable of multi-axis independent control and pulse output up to 9.8Mpps
Capable of controlling the jogging at fixed speed or by linear/S-curve acceleration and deceleration, positioning, and origin returning
Provided with various input/output formats enabling connection to an encoder input circuit as well as pulse output circuit.
With the multi-axis synchronization control function, capable of aligning the timing for operation start and end
Capable of speed and position overriding
Comparator circuits allowing the set value and counter value to be compared

*
For details about an extended warranty, please contact us.

Supported OS

Specifications

Add-on Module

Series	-
Bus Specification	PCI Express
Size	Short Size
Used Connector	2x 0.8mm-pitch 100-pin (Female)

Motion Control

Number of Channels	8-ch
Pulse Rate	0.3 ~ 9.8Mpps

Counter

Number of Channels	8-ch
Counting System	28-bit Up/Down count
Response speed	5MHz [differential]; 3MHz [TTL]; 1MHz [open collector output]

Supported OS

Supported OS	Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux

Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux

*
The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.
