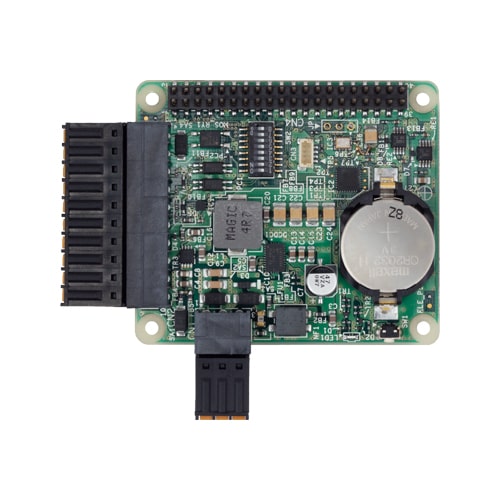

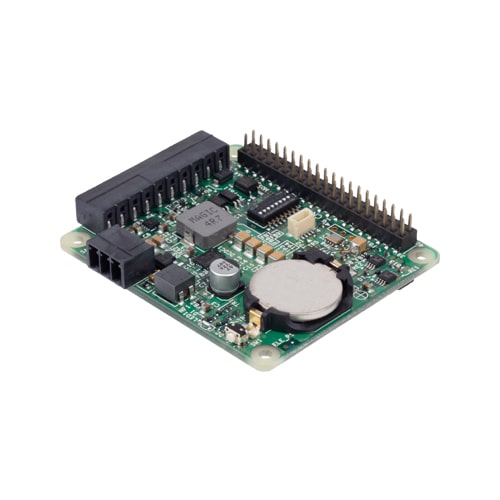

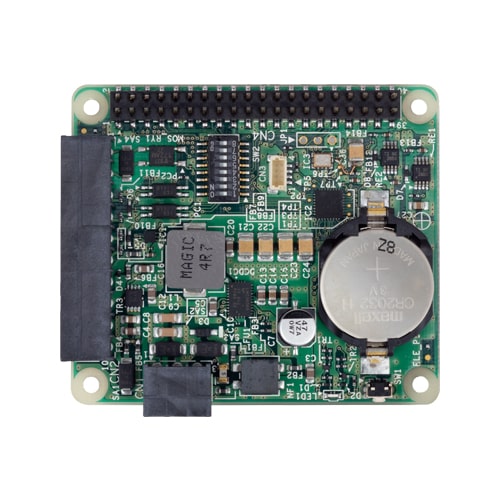

CPI-RAS RAS/RTC Raspberry Pi card

• Overview / Features
• Specifications
• Ordering Information
• Support / Downloads

Overview / Features

This product is RAS function expansion card for even greater Raspberry Pi functionality. The 40-pin GPIO pin header connector of a Raspberry Pi computer can be used for adding functionality through stacked connections to HAT (Hardware Attached on Top) size expansion cards and the card adds industrial computer availability and maintainability to the Raspberry Pi.

• RAS function expansion card for even greater Raspberry Pi functionality

  • The included 8 to 28 VDC power supply function makes it possible to use Raspberry Pi in a wide range of power supply environments

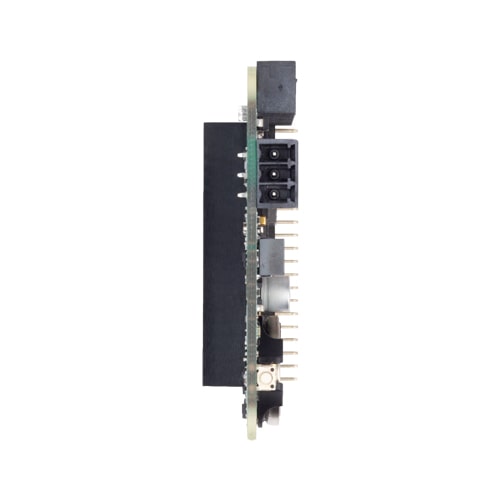

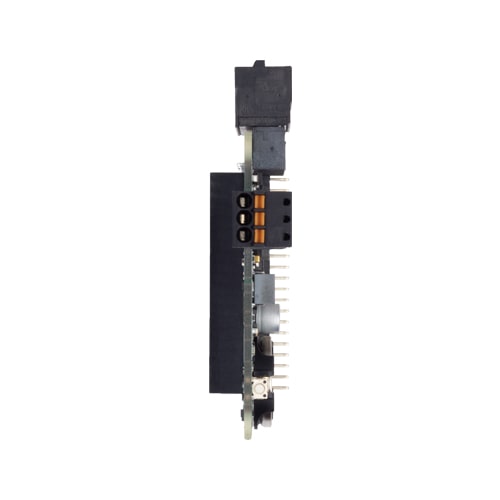

• Push-type terminal block for easy wiring

  • The CPI Series includes a push-type terminal block for convenient, simple connection and disconnection of wired HATs without the need for tools or crimping terminals.
• Equipped battery switching function

  • Battery switching function that commercial PC has can be added to Raspberry Pi and it also supports forced power-off function by doing a long press. The operation can be performed from the digital input of the push switch or external expansion connector installed in this product.
• Equipped Real Time Clock (RTC) to compensate temperature

  • The RTC compensation temperature, and the time can be accurately corrected according to the temperature environment. In addition, it supports intermittent operation by timer interrupt, and it is possible to start Raspberry Pi at the specified date and time by setting the start date and time.
