Overview / Features

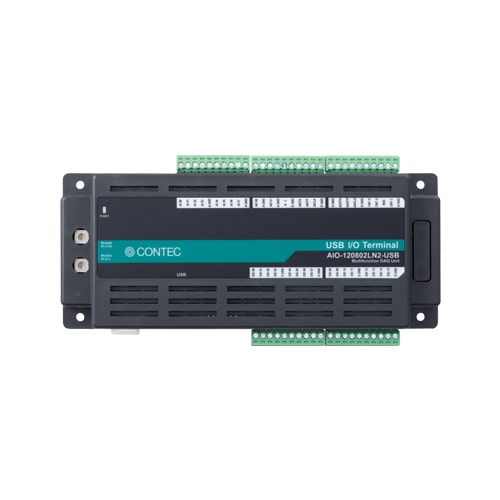

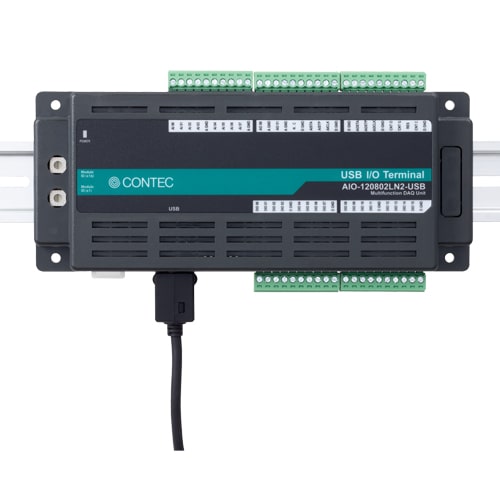

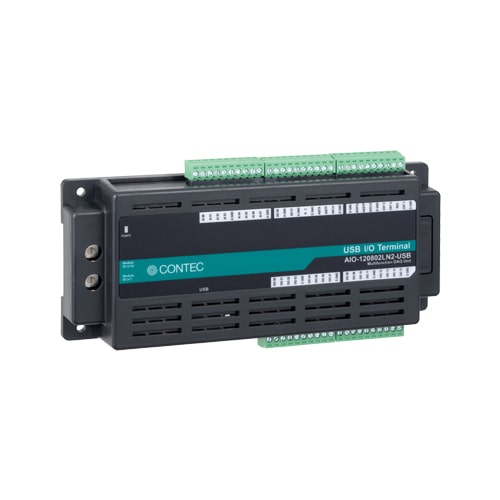

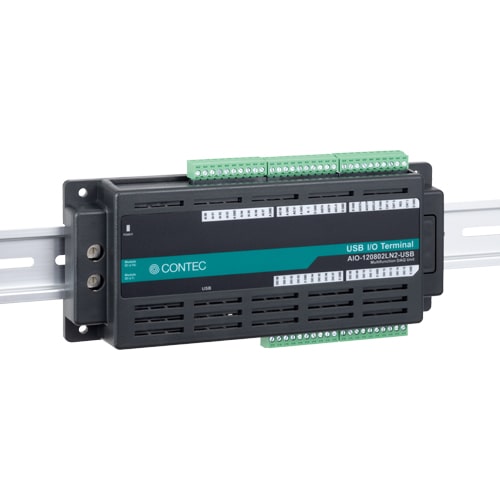

AIO-120802LN2-USB is a USB2.0-compliant analog I/O unit that extends the analog I/O function of USB port of PCs. Compact design not restricting installation location (188.0(W) x 78.0(D) × 30.5(H)) makes it easy to install the product within the panel or device using DIN rail mounting jigs, or on the floor or wall.
Windows/Linux device driver is supported with the product.
-
Multi-function
- Analog I/O can be implemented in a compact system. The series consists of two different models from which you can select the best model to suit your application.
AIO-120802LN2-USB contains the analog input (12bit, 8ch), analog output (12bit, 2ch). All two models include bi-directional digital inputs / outputs (16points, TTL level) and a counter (32bit 1ch, TTL level). You can select the input/output by the application software in eight signals units.
-
Analog I/O can be synchronized with an internal timer or external clock.
- Analog I/O can both be performed at fixed time intervals and synchronized with an external signal.
-
Digital filter function to prevent wrong recognition of external signal chattering is provided.
- This product has analog input / output control signal, digital input signal and digital filter function to prevent it from chattering in counter input signal. (Excluding external clock input signal, counter gate signal)
-
Buffer memory available for background processing independent of software
- This product include buffer memory (1K Word each for analog input and output) which can be used in either FIFO or ring format. This allows analog I/O to be performed independently of the operating state of the PC or software.
-
Compatible to USB 2.0/USB 1.1
- Compatible to USB 2.0/USB 1.1 and capable to achieve high speed transfer at HighSpeed (480 Mbps).
-
Windows/Linux support device driver
- Using the device driver API-TOOL makes it possible to create applications of Windows/Linux. In addition, a diagnostic program by which the operations of hardware can be checked is provided.
