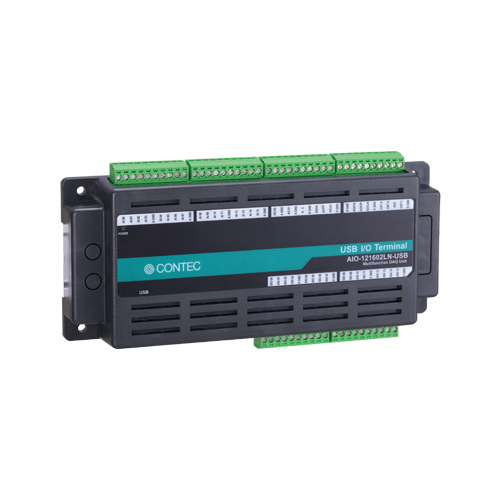

AIO-121602LN-USB Analog I/O USB I/O Unit /16ch AI(12bit 500ks/s) / 2ch AO - N Series

• Overview / Features
• Specifications
• Ordering Information
• Support / Downloads

Overview / Features

This product is a USB2.0-compliant analog I/O unit that extends the analog I/O function of USB port of PCs. Compact design not restricting installation location (188.0(W) x 78.0(D) × 30.5(H)) makes it easy to install the product within the panel or device using DIN rail mounting jigs, or on the floor or wall. Windows/Linux driver is supported with this product.

• Multi-function

  • Analog I/O can be implemented in a compact system. The series consists of two different models from which you can select the best model to suit your application. This product contains the analog input (12bit, 16ch), analog output (12bit, 2ch). All two models include bi-directional digital inputs / outputs (16points, TTL level) and a counter (32bit 1ch, TTL level). You can select the input/output by the application software in eight signals units.
• Analog I/O can be synchronized with an internal timer or external clock.

  • Analog I/O can both be performed at fixed time intervals and synchronized with an external signal.
• Digital filter function to prevent wrong recognition of external signal chattering is provided.

  • This product has analog input / output control signal, digital input signal and digital filter function to prevent it from chattering in counter input signal. (Excluding external clock input signal, counter gate signal)
• Buffer memory available for background processing independent of software

  • The boards include buffer memory (1K Word each for analog input and output) which can be used in either FIFO or ring format. This allows analog I/O to be performed independently of the operating state of the PC or software
• Software-based calibration function

  • Calibration of analog input/output can be all performed by software. Apart from the adjustment information prepared before shipment, additional adjustment information can be stored according to the use environment.

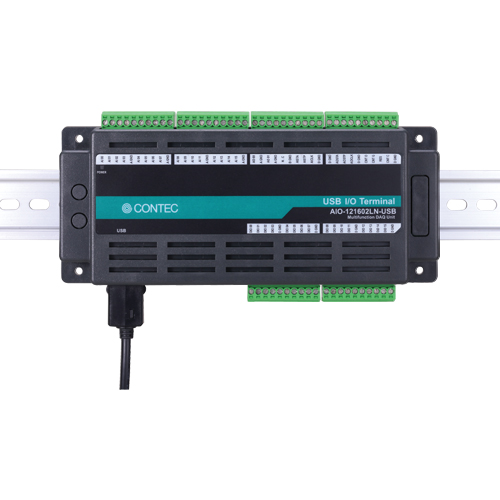

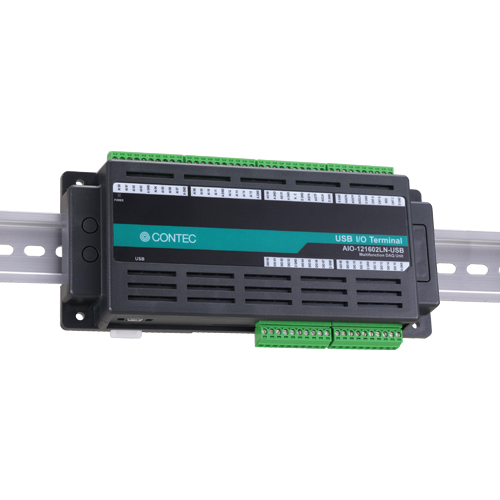

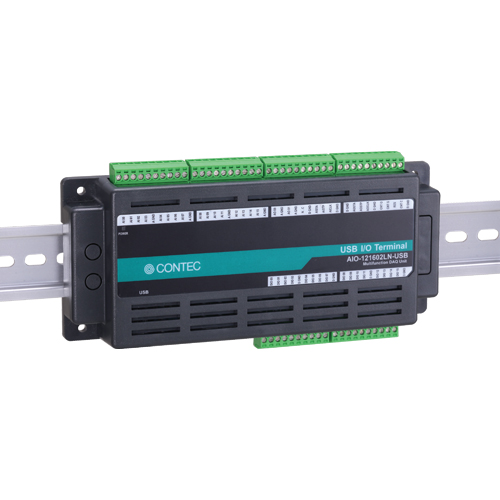

• Diverse installations such as screw fastening, magnet, DIN rail are possible

  • Using the digital I/O driver makes it possible to create applications of Windows/Linux. In addition, a diagnostic program by which the operations of hardware can be checked is provided.
