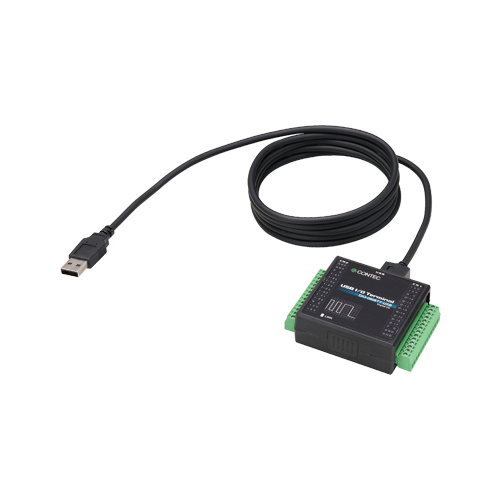

DIO-0808TY-USB Digital I/O USB I/O unit 8ch/8ch (non-isolated 5VDC-TTL) - the Y series

Standard Warranty1 yr
Extended WarrantyAvailable

Unisolated TTL level input, unisolated open-collector output
Compatible to USB1.1/USB2.0 and not necessary to power this product externally as the bus power supply is used.
Surge absorption diodes are built in the I/O circuit for surge voltage protection.
Windows compatible driver libraries are provided.
Terminal connector facilitating wiring

*
For details about an extended warranty, please contact us

Supported OS

Ordering Information

Ordering Information

Model	Description	Certification
DIO-0808TY-USB	Digital I/O USB I/O unit 8ch/8ch (non-isolated 5VDC-TTL) - the Y series

Options

Device Drivers

Item	Item Name
API-DIO(LNX)	Linux version Digital I/O Driver
API-DIO(WDM)	Windows Driver for Digital I/O Driver
API-USBP(WDM)	Windows version Driver Library for USB module

Development Support Tools

Item	Item Name
ACX-PAC(W32)	ActiveX components sets for measurement system development
DAQ-DNC-FE	A collection of .NET components for DAQfast measurement system development.
DAQ-LV-WIN	LabVIEW Data Acquisition Library
VI-DAQ	VI Library of data acquisition for LabVIEW

Other Accessories

Item	Item Name
BRK-USB-Y	Bracket for USB I/O Terminal products
CN6-Y14	14 pin Terminal connector(screw type) 6/set
