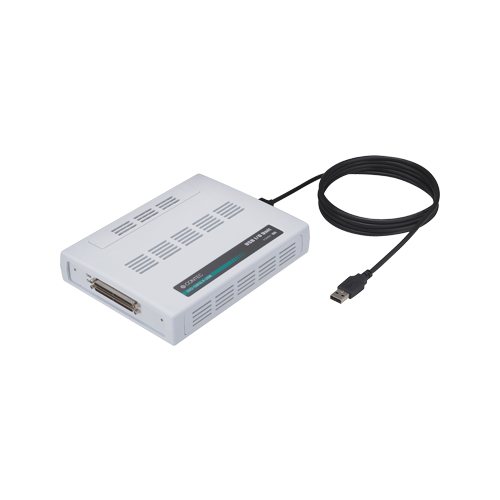

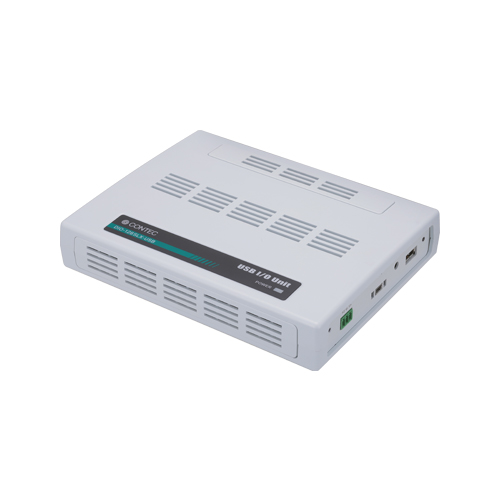

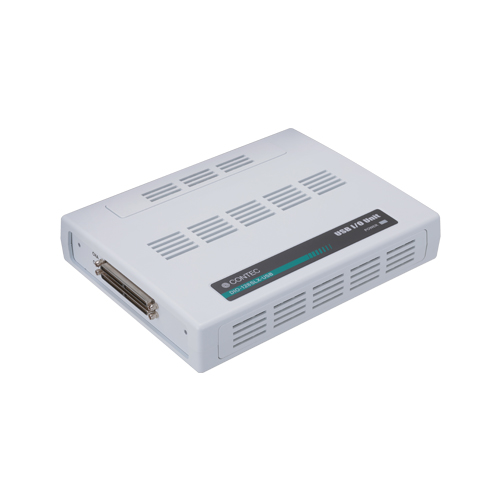

DIO-128SLX-USB Digital I/O USB I/O unit bi-directional 128ch (isolated 24VDC) - the X series

  • Standard Warranty1 yr
  • Extended WarrantyAvailable
  • Bidirectional signal control is possible, because digital input point and a digital output point are common.
  • 128 channels of Optocoupler isolated inputs (compatible with current sink output) and 128 channels of Optocoupler isolated open-collector outputs (current sink type)
  • Compatible to USB1.1/USB2.0 and capable to achieve high speed transfer at HighSpeed (480 Mbps).
  • Common terminal provided per 16 channels
  • Optocoupler bus isolation
  • *
    For details about an extended warranty, please contact us

Ordering Information

Ordering Information

Model Description / Certification
DIO-128SLX-USB Digital I/O USB I/O unit bi-directional 128ch (isolated 24VDC) - the X series

Options

Cable

Item Item Name
PCA100P 100pin 0.8mm-pitch Connector to Open-Ended, Flat Cable
PCB10096PS 96pin 1.27mm Pitch Conversion Shield Cable for 100pin 0.8mm Pitch Connector
PCB100PS Both sides with connector shield cable for 100 pin 0.8mm pitch connectors
PCB100WS 37pin D-SUB x2 Distribution Shield Cable for 100pin 0.8mm Pitch Connector

Terminal

Item Item Name
EPD-100A Screw Terminal (M3 x 100)
EPD-96 Screw Terminal (M3.5 x 96)
EPD-96A Screw Terminal (M3 x 96)

Expansion Accessory Module

Item Item Name
CM-64L Signal monitor Accessory for Digital I/O

Power Supply / AC Adapter

Item Item Name
POA200-20-2 AC-DC Power Adaptor(5VDC, 2A)
POW-AD13GY F&eIT series AC-DC Power Supply Unit Input 85-132VAC, Output 5VDC 3A
POW-AD22GY F&eIT series AC-DC Power Supply Unit Input 85-264VAC, Output 5VDC 2A
POW-DD10GY F&eIT series DC-DC Power Supply Unit Input : DC10-30V, Output : DC5V 3A

Other Accessories

Item Item Name
BRK-USB-X USB I/O Unit Bracket for X series
CCB-96 Connector conversion board

Software Development Kit

Item Item Name
API-DIO(WDM) for USB Digital I/O Driver API-DIO(WDM) for USB

Extended Warranty Service

Item Item Name
ESP-F5 Extended warranty service package (5 years service course)
ESP-S1 Extended warranty service package (Extension one year)
