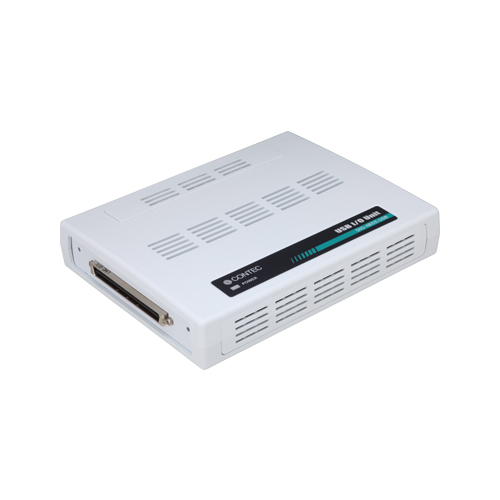

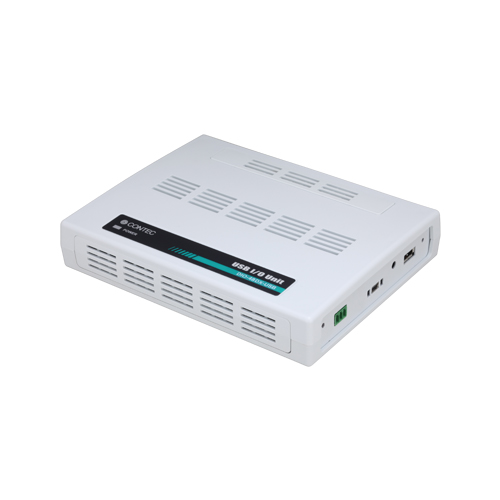

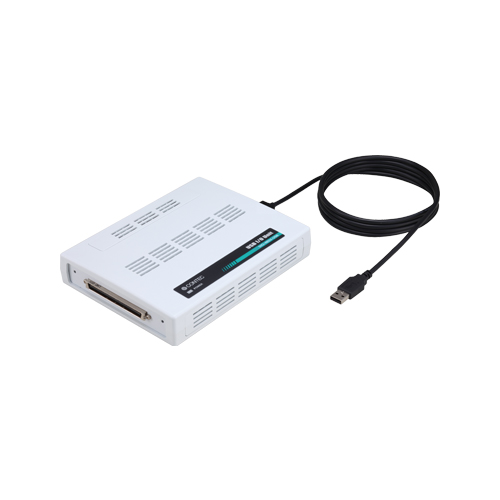

DIO-48DX-USB Digital I/O USB I/O unit bi-directional 48ch (non-isolated 5VDC-TTL) - the X series

  • Standard Warranty1 yr
  • Extended WarrantyAvailable
  • This product can be used to TTL-level input/output 48 points bi-directional digital corresponding to the equivalence to the i8255 mode 0.
  • You can use up to 48channels of the input signals as interrupt events.
  • This product has a digital filter to prevent wrong recognition of input signals from carrying noise or a chattering.
  • USB HUB function
  • Connectors are compatible with PCI/PCI Express bus-compatible board
  • Windows compatible driver libraries are attached.
  • *
    For details about an extended warranty, please contact us.

Ordering Information

Ordering Information

Model Description / Certification
DIO-48DX-USB Digital I/O USB I/O unit bi-directional 48ch (non-isolated 5VDC-TTL) - the X series
  • CE marking
  • FCC compliant
  • VCCI

Options

Cable

Item Item Name
PCA96P A one end connector flat cable for 96 pin Half-Pitch connector
PCA96PS-P A one end connector shield cable for 96 pin Half-Pitch connector (Mold type)
PCB96P Flat Cable with Connectors on both sides for 96-pin Half Pitch Connectors
PCB96PS-P Both sides with connector shield cable for 96 pin Half-Pitch connector(Mold type)

Terminal

Item Item Name
DTP-64A Screw Terminal (M3 x 96)
EPD-96 Screw Terminal (M3.5 x 96)
EPD-96A Screw Terminal (M3 x 96)

Power Supply / AC Adapter

Item Item Name
POW-AD13GY F&eIT series AC-DC Power Supply Unit Input 85-132VAC, Output 5VDC 3A
POW-AD22GY F&eIT series AC-DC Power Supply Unit Input 85-264VAC, Output 5VDC 2A
POW-DD10GY F&eIT series DC-DC Power Supply Unit Input : DC10-30V, Output : DC5V 3A

Other Accessories

Item Item Name
BRK-USB-X USB I/O Unit Bracket for X series

Software Development Kit

Item Item Name
API-DIO(LNX) Linux version Digital I/O Driver
API-DIO(WDM) Windows Driver for Digital I/O Driver

Library Software

Item Item Name
DAQfast LabVIEW Data Acquisition Library
