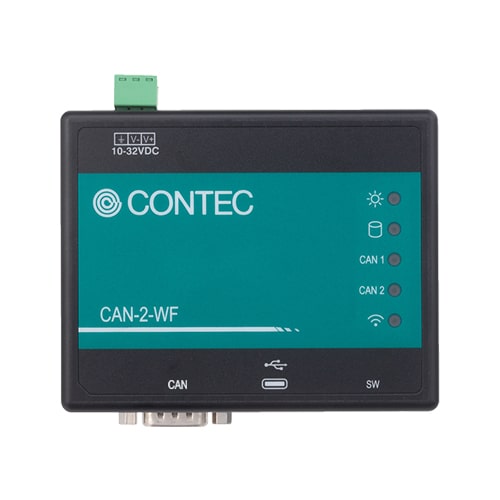

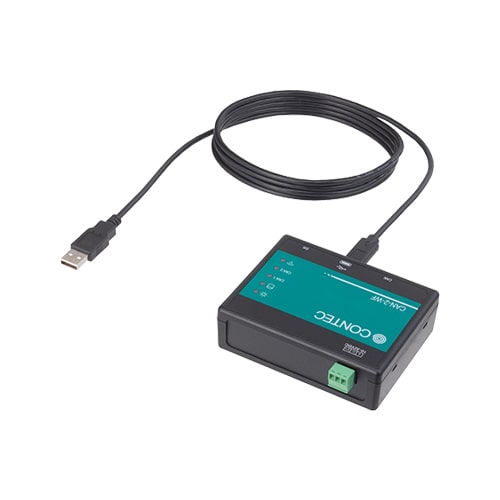

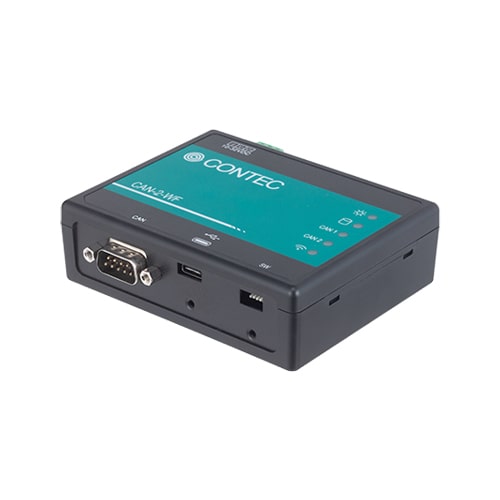

CAN-2-WF CAN 2.0B converter unit for Wireless/USB 2 ch

  • Standard Warranty3 yrs
  • Extended WarrantyAvailable
  • cnt-3204mt-lpe_rgb_96dpi_500x500モーダルで開く
  • cnt-3204mt-lpe_conn_rgb_96dpi_500x500モーダルで開く
  • cnt-3204mt-lpe_up_rgb_96dpi_500x500モーダルで開く
  • モーダルで開く
  • CAN communication function
  • Compatible to USB 2.0/USB 1.1 and bus power-driven eliminating the need for external power
  • Includes a separate send/receive buffer for each channel
  • Capable of adapting a wide-range power (10 to 32VDC)
  • Provide device drivers compatible with Windows/Linux
  • Compatible with 4 standards, IEEE802.11n/a/b/g
  • *
    For details about an extended warranty, please contact us.

Overview / Features

This product is a converter unit that expands the CAN communication function via a wireless LAN connection or a PC USB port. It complies with four standards: IEEE802.11n/a/g/b and allows for wireless communication with a PC running.
This product is compliant with CAN2.0B communication, supporting communication speeds of up to 1Mbps. It includes a USB Type-C port and can operate using the bus power from the host. Windows/Linux driver is supported with this product.

  • CAN communication function
    • This product can expand the 2-channel CAN communication function to a PC.
      This product is compliant with CAN2.0B communication, supporting communication speeds of up to 1Mbps. Each channel is controlled by an individual CAN controller, allowing each channel to communicate independently of the status of other channels.
  • Compatible to USB 2.0/USB 1.1 and bus power-driven eliminating the need for external power
    • Compatible to USB2.0/USB1.1 and capable to achieve high speed transfer at HighSpeed (480 Mbps). The product is driven by bus power from USB, which eliminates the need for external power.
      * The wireless LAN cannot be used when this product is connected via USB. When using the wireless LAN, supply power externally.
  • Includes a separate send/receive buffer for each channel
    • A separate 16 message FIFO buffer for sending and receiving is provided at each channel.
  • Capable of adapting a wide-range power (10 to 32VDC)
    • The product is capable of dealing with a wide range of power in the differing environments. Power connector also has a FG terminal.
  • Provide device drivers compatible with Windows/Linux
    • Windows/Linux applications can be created by using the device driver API-TOOL provided on our website.
  • Compatible with 4 standards, IEEE802.11n/a/b/g
    • You can choose 4 ch (W52 *1) in the 5 GHz (IEEE802.11n/a), and in the 2.4 GHz (IEEE802.11n/g/b), you can choose from 1 to 11ch. So, it is possible to design a flexible wireless network to adjust a radio wave interference.
      *1 W52 : 36, 40, 44, 48ch
