COM-1C-ZB Serial Communication IEEE802.15.4 Wireless Media Converter RS-232C 1ch

• Overview / Features
• Specifications
• Ordering Information
• Support / Downloads

Overview / Features

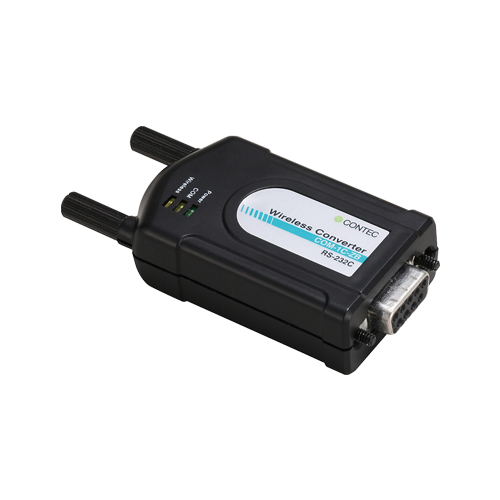

This product is a Wireless COM adapter based on IEEE802.15.4, It can convert serial number RS-232C interface into short distance Wireless. It is small body(78.3*20.5*36.5) and can connect to a PC directly. It not only can use movement mode of the transmission mode for communication, which connected with 1 to 1 between machinery with wireless connection, but also can use movement mode of the virtual COM mode' for communication as 1 to N connection with an exclusive driver. It can perform the setting of the machinery by the DIP switch of the main body or a setting utility easily. *This product may not be allowed to use in your country.

• • It converts serial RS-232C interface into short distance wireless LAN(IEEE802.15.4). The wireless function is data-transfer speed of 250,000bps*1 in 2.4GHz band/16ch(11-26). A setting place of the connection machinery and limitation of the distance are improved than cable connection by making it wireless. The serial function is a transfer speed of greatest 115,200bps*1. * 1: It is not a thing showing a real transfer speed with the theoretical maximum.
• • It can use two modes of wireless communication, which is not only can convert from serial communication, that connected with 1 to 1 between machinery by serial cable, to wireless LAN[a transmission mode], but also it can use [virtual COM mode] as 1 to N connection by combining an exclusive driver.

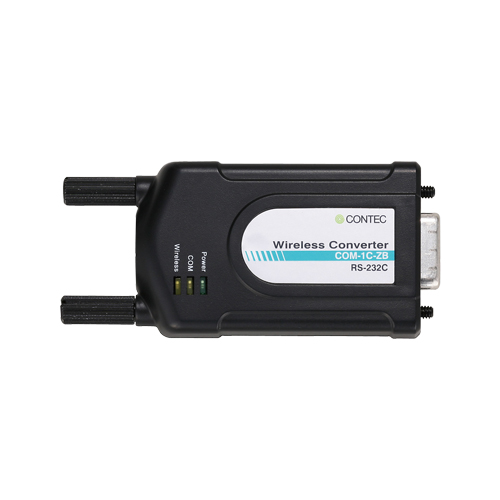

• • By a small body (78.3*20.5*36.5), adopt 9 pin D-SUB[F(female)] serial connector of the DCE wiring, It can connect to a PC directly.

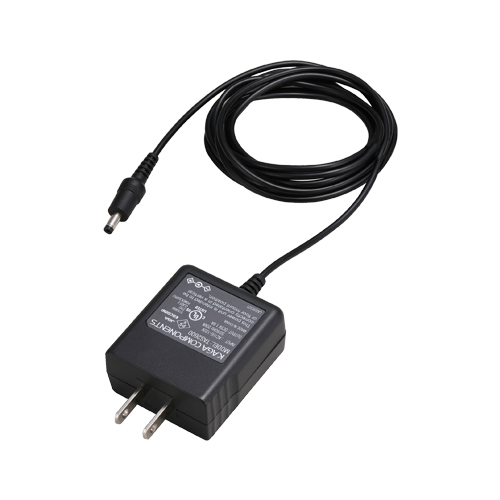

• • As a method of the power supply supply, you can use the power from an attached small AC adapter to DC Jack or use the ninth pin(5VDC) of serial number connector from an outside power supply.
• • When you use [transmission mode], It prepares the DIP switch which you can set easily. The setting of the virtual COM mode, group ID prepare for the setting utility that machinery setting can perform easily. We offer the setting utility in our homepage.
