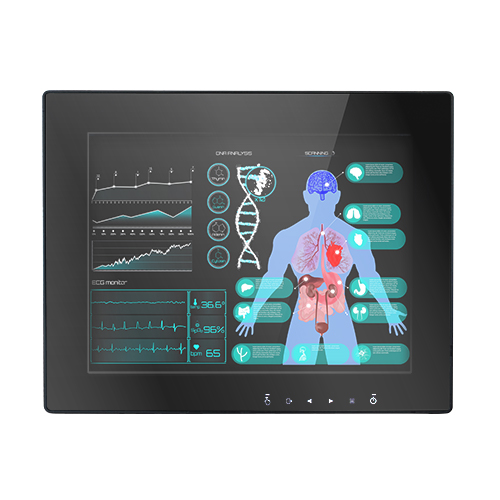

CM-ME121P 12.1" 1024 x 768, 500 nits, PCAP Touch Clinical Medical Monitor, 5 to 40 C

  • Standard Warranty1 yr.
  • Ultra-compact 12.1-inch form factor with near-square aspect ratio
  • One-click touch enable/disable soft key located on the front of the monitor

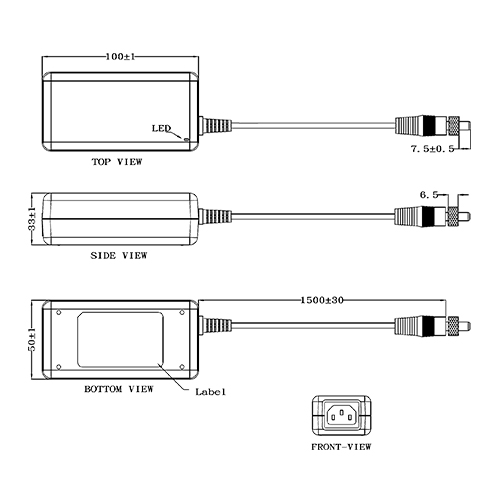

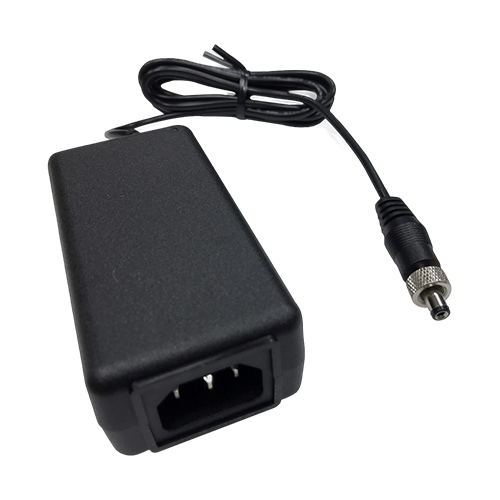

  • USB hub to power connected devices and 24V/1.5A medical-grade power adapter with locking mechanism (optional)
  • IP65-rated front bezel
  • Advanced Projected Capacitive (PCAP) touch technology
  • Long-Life, revision controlled bill of materials (BOM)

Specifications

Mechanical Design

Mounting VESA 75 x 75; Desktop

Touch Screen

LCD size 12.1-inch
LCD resolution 1024 x 768 (XGA)
Touch panel resolution -
Detection method Projected capacitive touch (PCAP)

Interface (TP)

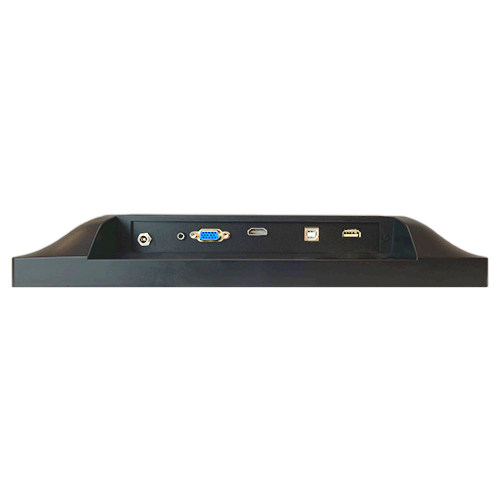

Video input HDMI; Analog RGB
Touch panel input USB

Power

Input voltage 24VDC

Environment

Operating temperature 5 to 40°C (41 to 104°F)
Storage temperature -10~60°C (14~140°F)
