BX-220 Box Computer BX-200 - Fanless Embedded PC / Slim Paperback Size / Extended RAS / Atom E3845 (BayTrail SoC) / DC Power Supply

  • Discontinued
  • Standard Warranty3 yrs
  • Extended WarrantyAvailable
  • bx-220_l_rgb_96dpi_500x500.jpgモーダルで開く

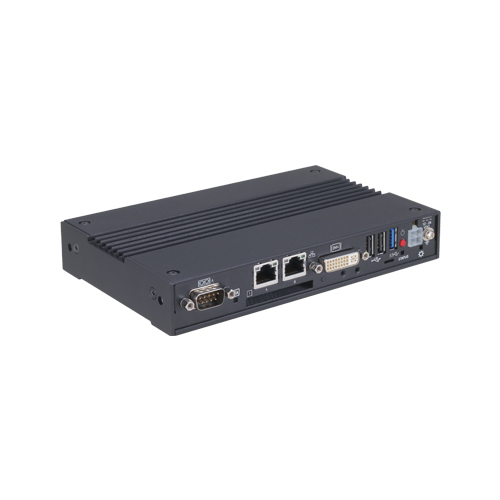

  • bx-220_r_rgb_96dpi_500x500.jpgモーダルで開く
  • bx-220_front_up_rgb_96dpi_500x500.jpgモーダルで開く
  • bx-220_back_up_rgb_96dpi_500x500.jpgモーダルで開く
  • End of Repair Service: 2031/04/18

Check a compatible replacement

* The end of repair date may change depending on the situation.

  • Contributing to reduction of running cost and promotion of energy efficiency.
  • Contributing to compact device design. Ultra-small PC is roughly the same area as a paperback book.
  • Slitless/fanless design that reduces maintenance work.
  • Remote power management function to reduce operation tasks.
  • Major types of peripherals are supported with rich interfaces including the two CFast card slots.
  • Built-in monitoring function for improved reliability of industrial equipments.
  • *
    For details about an extended warranty, please contact us.
ContecSecure Shield Logo

Is Your Business Protected from a Cyber Attack?

The BX-220 is now available with ContecSecure™, a comprehensive, multi-level hardware security program.

ContecSecure Program Details

Specifications

Mechanical Design

Mounting Desktop; Wall Mount

Software Support

Supported OS Windows 10 IoT Enterprise LTSB 2016 64-bit; Windows Embedded Standard 7 32-bit

Core System

CPU Generation (Development code) Bay Trail
Processor Atom E3845
CPU socket -
Memory 8GB; 4GB; 2GB
RAS Remote reset; Watchdog timer
GPU -
AI Performance -
Security NIST SP800-147 (BIOS Write Protect); Secure Boot USB Key

Interface

Video 1x DisplayPort (v1.1a); 1x DVI-I
LAN 2x 1000BASE-T
Wireless -
Audio 1x Line out; 1x Mic-in
I/O 1x USB3.2 Gen1 (USB3.0); 2x USB2.0; 2x RS-232C; 1x RS-422A/485
Memory card 2x CFast slots

Expansion Slot

Expansion bus -
Drive bay -

Power

Input voltage 12 to 24VDC

Environment

Operating temperature 0 to 60°C (32 to 140°F) (when using 1000BASE-T: 0 to 55°C (32 to 131°F) ) w/ 0.7m/s airflow; 0 to 50°C (32 to 122°F) (when using 1000BASE-T: 0 to 45°C (32 to 113°F) ) w/o airflow; * Derating may occur (Refer to Manual)
Storage temperature -10 to 60°C (14 to 140°F)
Standards & Certifications CCC; CE; FCC Class A; UKCA; UL; VCCI Class A
