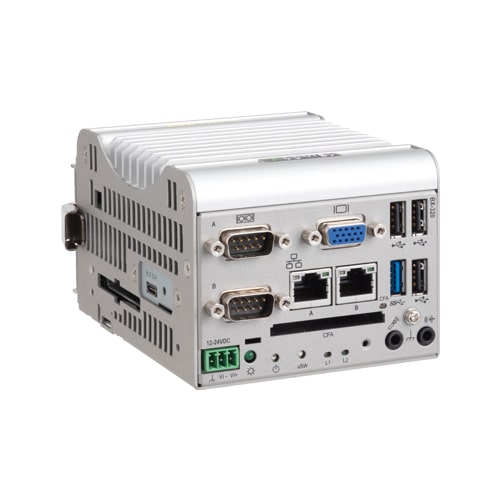

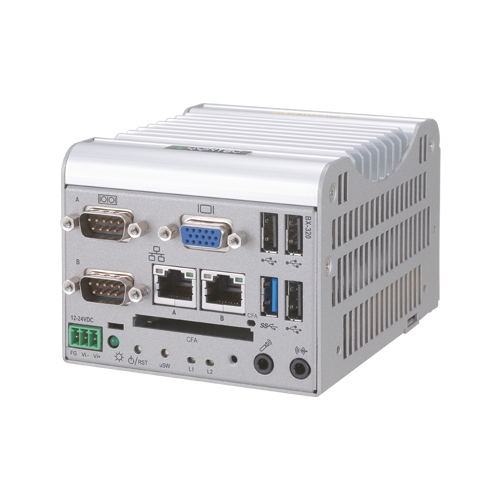

BX-321 Box Computer BX-300 - Fanless Embedded PC / DIN Rail Mountable / F&eIT Bus / PCIe Bus / Atom E3845 (BayTrail SoC) / DC Power Supply

Limited Stock

Standard Warranty3 yrs
Extended WarrantyAvailable

End of Repair Service: 2032/02/27

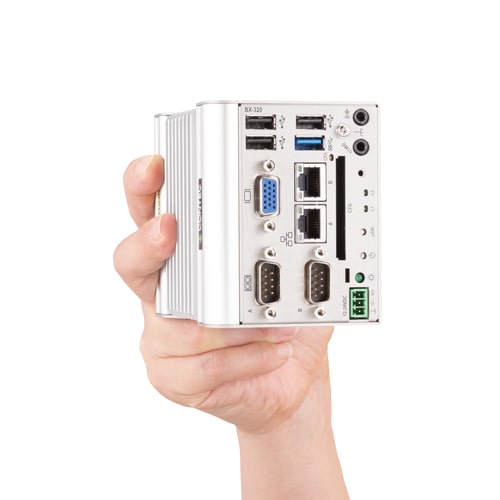

Compact design

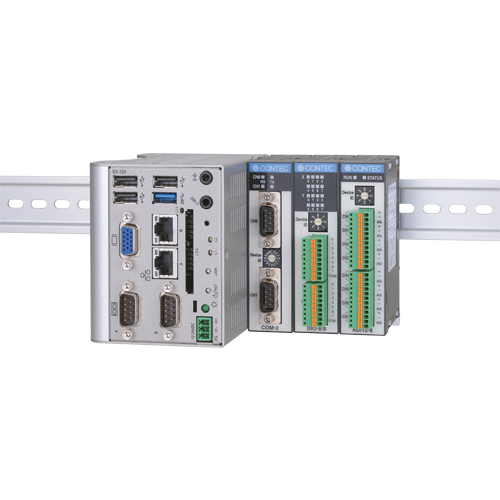

Can be used as a controller for F&eIT series measurement / control / communication devices*1
Expandable with PCI cards, PCI Express cards

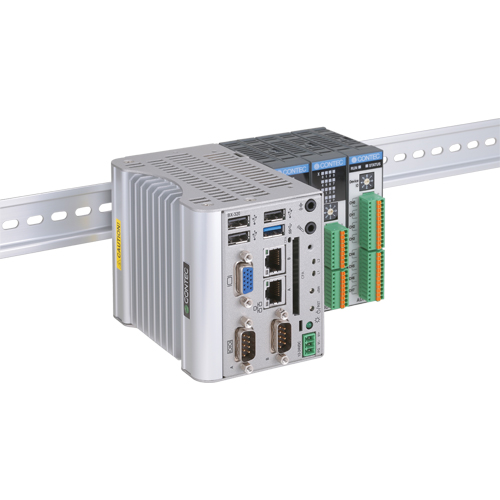

Can be attached to 35mm DIN rail
Supports 10.8 to 31.2 VDC wide range power supply
Reliable design required for embedded applications

*
For details about an extended warranty, please contact us.

Ordering Information

Ordering Information

Model	Description	Certification
BX-321-DC700000 [Limited Stock]	[End of Repair Service : February 27, 2032] Base model, Without OS, Without Storage
BX-321-DC731314 [Discontinued]	[End of Repair Service : February 27, 2031] WES7 Multi-languages(English, Chinese, Japanese, Korean) OS Model, (16GB CFast(SLC))
BX-321-DC781724 [Limited Stock]	[End of Repair Service : February 27, 2032] Win10 IoT Enterprise Multi Languages(English, Chinese, Japanese, Korean) OS Model, (32GB CFast(Q-MLC))
BX-321-DC7C1724 [Limited Stock]	[End of Repair Service : February 27, 2032] Atom E3845 / 4GB ECC RAM / CFast 40GB iSLC(Support Power Failure Protection) / Win10 IoT LTSB 2016
BX-321-DC7D1724 [Limited Stock]	[End of Repair Service : February 27, 2032] Atom E3845 / 4GB ECC RAM / CFast 128GB TLC(Support Power Failure Protection) / Win10 IoT LTSB 2016

Options

Expansion box

Item	Item Name
ECH-PCI-DE-H4D	Cable type PCI Express bus expansion chassis (short x 4)

Cable

Item	Item Name
CB-DE	Cable for PCI Express

Storage

Item	Item Name
CFS-128GBTP-A	1.0-inch 128GB SATA CFast Card (TLC)
CFS-16GB-A	1.0-inch SATA CFast Card (SLC)
CFS-16GBQ-A	1.0-inch 16GB SATA CFast Card (Q-MLC)
CFS-32GBM2-A	1.0-inch 32GB SATA CFast Card (MLC)
CFS-32GBQ-B	1.0-inch 32GB SATA CFast Card (Q-MLC)　(Wide temperature range spec)
CFS-40GBIP-A	1.0-inch 40GB SATA CFast Card (iSLC)
CFS-A	1.0-inch SATA CFast Card (SLC)
