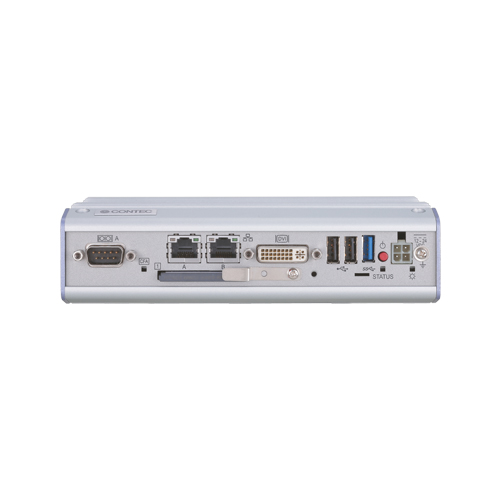

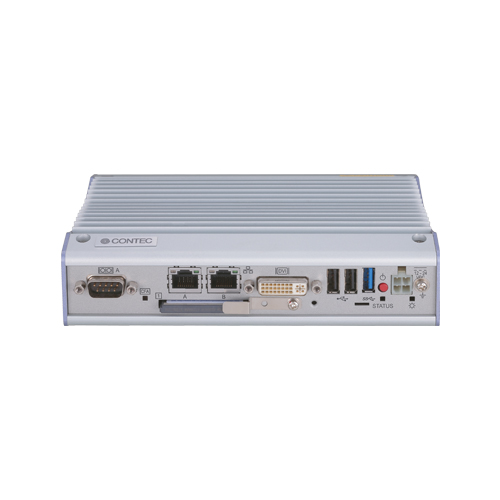

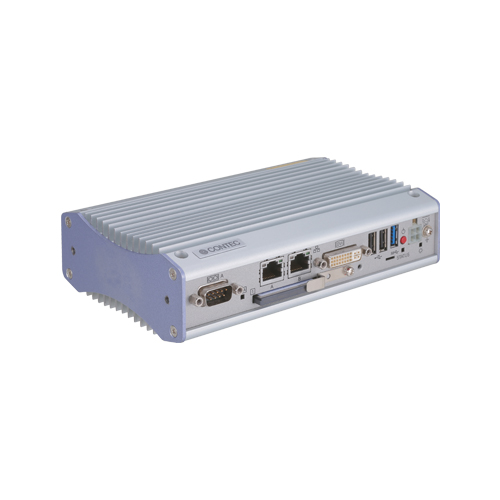

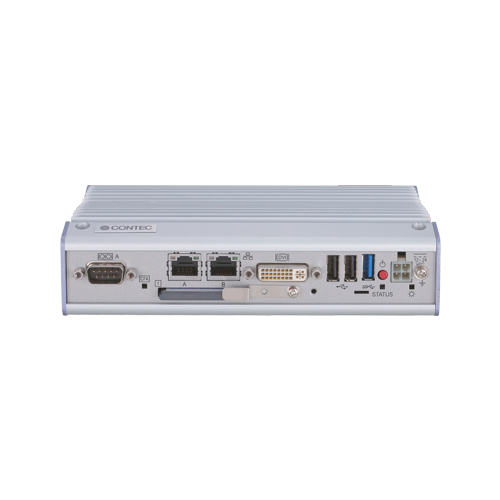

BX-830 Box Computer BX-830 - Fanless Embedded PC / Wide Operating Temperature Range / Conform to EN 50155, Train and Vehicle Mountable / Atom E3845 (BayTrail SoC) / DC Power Supply

• Overview / Features
• Specifications
• Ordering Information
• Support / Downloads

Overview / Features

This product is a fanless computer for embedded applications. It features an Intel Atom processor E3845 chipset. Even though it has a slitless case, it supports a wide range of temperatures from -40 to 70°C*1 and can be operated stably under harsh operating conditions.
Thanks to its Quad-Core CPU, it can perform stable, high-speed processing of four applications at the same time (one application is processed by each core). The Quad-Core CPU also greatly reduces power consumption, with power efficiency improved to at least twice that of the previous generation's architecture.
It has extension interfaces such as DVI-I, Display Port, 1000BASE-T, USB 3.0, and serial. It employs a CFast card for storage and is fanless to ensure a totally spindleless design that simplifies maintenance. Embedded-type CPU have been adopted. The use of readily available parts ensures the ease of the use of the product. In addition, the use of Contec-customized BIOS allows support to be provided at the BIOS level. and Contec's unique functions :"Power Failure Protection", "CONTEC Fast Boot", "Secure Boot USB Key", "Disk Copy", "Self-diagnosis" are available.

• *1
  with 0.5m/s airflow;　Derating may be necessary depending on the usage environment.

• Contributing to reduction of running cost and promotion of energy efficiency

  • It adopts the low-power platform with Intel Atom Processor E3845 that realizes lower power consumption while ensuring sufficient performance.
• Supports a wide range of temperatures with operations guaranteed from -40 to 70°C

  • Stable operations of this product are possible over a wide range of temperatures from -40 to 70°C*1.
    • *1
      with 0.5m/s airflow;　Derating may be necessary depending on the usage environment.



• Supports railway standards

  • This product conforms to railway standard EN50155 (Class TX)*2 and fire safety standard EN45545-2. This ensures that the product can operate safely in harsh environments such as railroad vehicles.
    *2 Type testing has been performed.
• Falling-off prevention tools and fixing clamps provided to avoid trouble caused by disconnected cable

  • This product stays trouble-free, being equipped with USB removal prevention fitting and cable clamp for connectors with no locking mechanism, such as USB cable, and with hardware to properly mount and avoid falling out of CFast card.
• A wide range of power supplies (10.8 to 33.6VDC) supported

  • As the product supports a wide range of power (10.8 to 33.6VDC ), it can be used in a variety of power environments. The separately available AC adapter adds support for 100VAC power.
• Safety design required for embedded applications

  • For Windows Embedded Standard installed model or Windows 10 IoT Enterprise LTSB 2016 installed model, it is possible to use the WF*3 function of OS. It is designed for safety required for embedding purpose, for example, prohibiting unwanted writing to the CF card with EWF function will relieve the concern about the writing limits to the CF card and prevent an unintentional system alteration.
    *3 EWF (Enhanced Write Filter) is a function of Windows Embedded Standard. UWF (Unified Write Filter) is a function of Windows 10 IoT Enterprise LTSB 2016. They protect the disk from being actually written by redirecting the writing to RAM.
