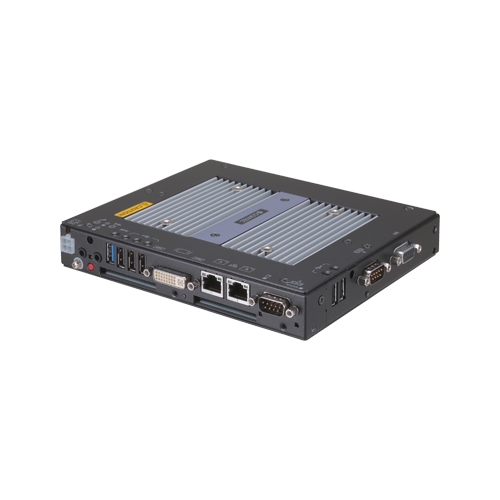

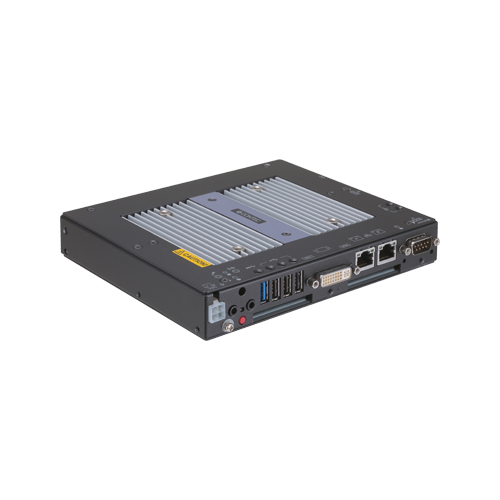

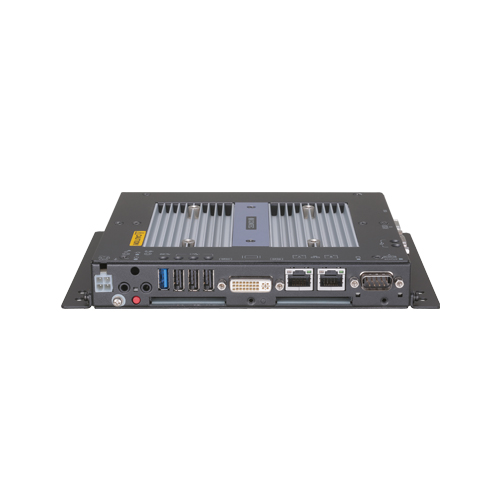

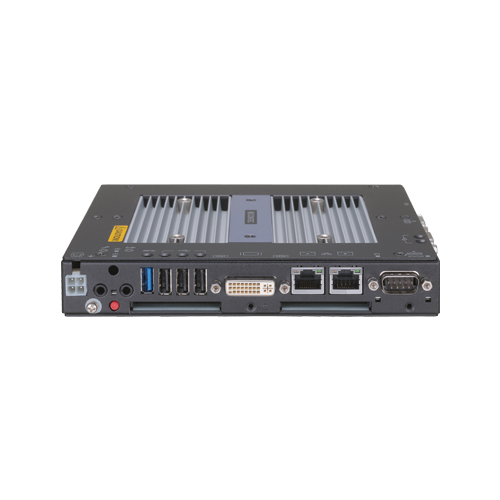

BX-956S BX-956S - Fanless Embedded PC / Slim A5 Size / Atom E3845 (BayTrail SoC) / DC Power Supply

Standard Warranty3 yrs
Extended WarrantyAvailable

Design that meets the safety standard
Slitless/fanless design that reduces maintenance work
Safety design required for embedded applications
Remote power management function to reduce operation tasks
Major types of peripherals are supported with rich interfaces including the two CFast card slots
Falling-off prevention tools and fixing clamps provided to avoid trouble caused by disconnected cable

*
For details about an extended warranty, please contact us.

BUY NOW - U.S. Customers can purchase online in the Contec Americas eShop

Specifications

Mechanical Design

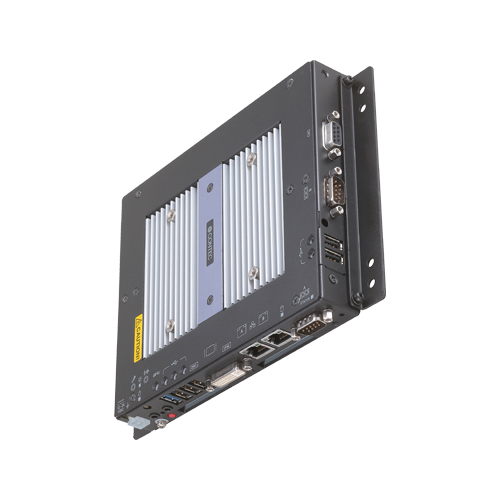

Mounting	Desktop; Wall Mount

Software Support

Supported OS	Windows 10 IoT Enterprise LTSB 2016 64-bit; Windows Embedded Standard 7 32-bit; -

Core System

Processor	Atom E3845
CPU Generation (Development code)	Bay Trail
CPU socket	-
Memory	8GB; 4GB
RAS	-
GPU	-
AI Performance	-
Security	NIST SP800-147 (BIOS Write Protect); Secure Boot USB Key

Interface

Video	1x DVI-I
LAN	2x 1000BASE-T
Wireless	-
Audio	1x Line out; 1x Mic-in

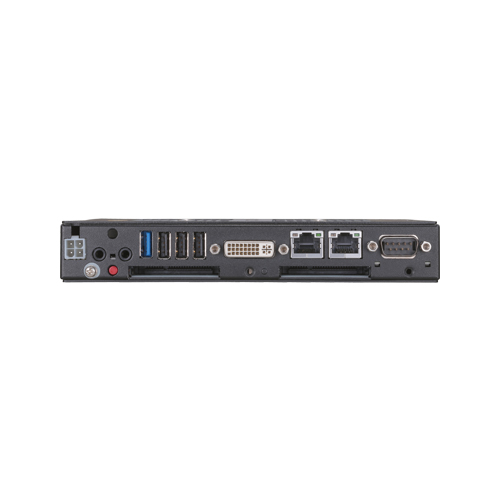

I/O	1x USB3.2 Gen1 (USB3.0); 5x USB2.0; 2x RS-232C
Memory card	2x CFast slots

Expansion Slot

Expansion bus	-
Drive bay	-

Power

Input voltage	12 to 24VDC

Environment

Operating temperature	0 to 60°C (32 to 140°F) (when using 1000BASE-T: 0 to 55°C (32 to 131°F) ) with 0.7m/s airflow; 0 to 50°C (32 to 122°F) (when using 1000BASE-T: 0 to 45°C (32 to 113°F) ) without airflow; * Derating may occur (Refer to Manual)
Storage temperature	-10 to 60°C (14 to 140°F)
Standards & Certifications	CCC; CE; FCC Class A; UKCA; UL; VCCI Class A
