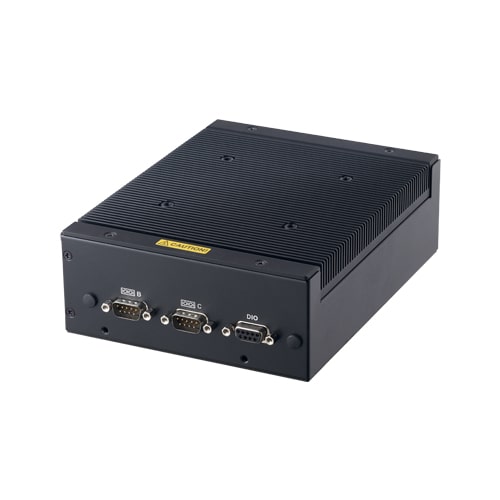

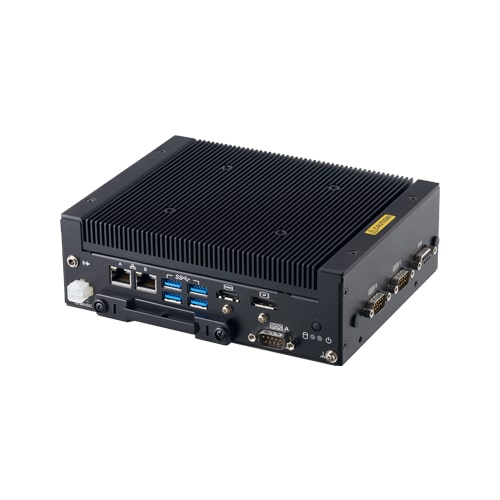

BX-M3010 BX-M3010 - Fanless Embedded PC / Intel 8th Gen. Core i5-8365UE (Whiskey Lake-U SoC) / 1 x 2.5-inch drive bay / DC Power Supply

Standard Warranty2 yr

Improved CPU performance by Whiskey Lake-U processor
Enhanced graphics performance
Dual Gigabit LAN ports and M.2 slot
Major types of peripherals are supported with rich interfaces
2.5” removable drive bay for easy maintenance

Similar Models

Core i ULV Model(Skylake)

Specifications

Mechanical Design

Mounting	VESA 100 x 100; VESA 75 x 75; Wall Mount

Software Support

Supported OS	Windows 10 IoT Enterprise 2019 LTSC 64-bit

Core System

Processor	Core i5-8365UE; Celeron 4305UE
CPU Generation (Development code)	8th Gen. (Whiskey Lake-U)
CPU socket	-
Memory	up to 16GB
RAS	Hardware monitor (Fan speed / Temperature / Voltage); Watchdog timer
GPU	-
AI Performance	-
Security	TCG TPM 2.0

Interface

Video	1x DisplayPort; 1x HDMI
LAN	2x 1000BASE-T
Wireless	-
Audio	1x Line out
I/O	4x USB3.1; 2x RS-232C; 1x RS-232C/422A/485
Memory card	-

Expansion Slot

Expansion bus	1x M.2 Key E (2230); 1x M.2 Key M (2242/2280); 1x Mini PCI Express
Drive bay	1x 2.5-inch bay (SATA)

Power

Input voltage	12 to 24VDC

Environment

Operating temperature	0 to 60°C (32 to 140°F) with 0.7m/s airflow
Storage temperature	-10 to 60°C (14 to 140°F)
Standards & Certifications	CE; FCC Class A; UKCA
