BX-U310 BX-U310 - Fanless Embedded PC / Ultra small design / Atom x6413E

Standard Warranty3 yrs
Extended WarrantyAvailable

Palm-sized ultra-compact PC
Operation capable in a wide temperature range -10 to 60°C (14 to 140°F)
"Power failure protection system" features power-off without OS shutdown
High-security design contributes to a highly reliable system
CONTEC-customized BIOS provides useful utility
Helps reduce running costs and energy consumption

*
For details about an extended warranty, please contact us.

Technical Column : Choose industrial PCs based on availability

Similar Model

Apollo Lake Model

Specifications

Mechanical Design

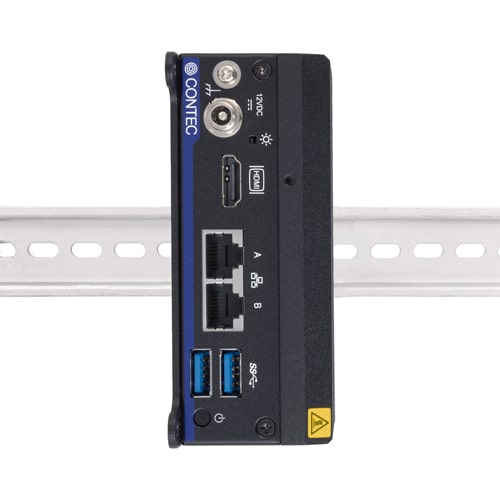

Mounting	DIN Rail Mount; Wall Mount

Software Support

Supported OS	Windows 11 IoT Enterprise LTSC 2024; Windows 10 IoT Enterprise 2021 LTSC 64-bit

Core System

CPU Generation (Development code)	Elkhart Lake
Processor	Atom x6413E
CPU socket	-
Memory	8GB
RAS	Hardware monitor (Temperature / Voltage); Watchdog timer
GPU	-
AI Performance	-
Security	TCG TPM 2.0; NIST SP800-147 (BIOS Write Protect); Secure Boot USB Key

Interface

Video	1x HDMI
LAN	2x 1000BASE-T
Wireless	Wireless LAN IEEE802.11ax/ac/a/b/g/n
Audio	-
I/O	2x USB3.2 Gen2 (USB3.1)
Memory card	1x M.2 2242

Expansion Slot

Expansion bus	1x M.2 Key E (2230); 1x M.2 Key M (2242)
Drive bay	-

Power

Input voltage	10.8 to 13.2VDC

Environment

Operating temperature	-10 to 60°C (-14 to 140°F) airflow 0.7m/s; -10 to 50°C (14 to 122°F) without airflow
Storage temperature	-10 to 60°C (14 to 140°F）
Standards & Certifications	CE; FCC Class B; TELEC; UKCA; VCCI Class B
