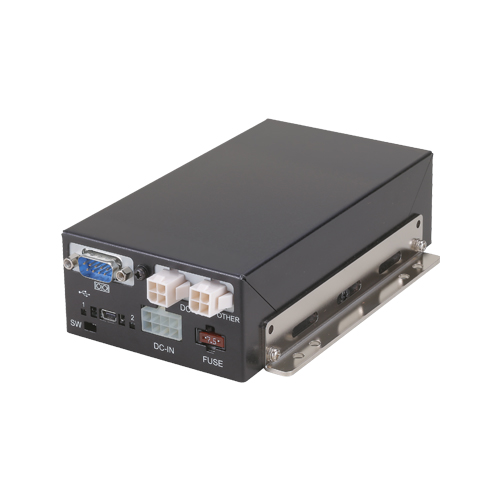

PWI-60D6D2 DC/DC Converter Power Supply for Moving Vehicles

• Overview / Features
• Specifications
• Ordering Information
• Support / Downloads

Overview / Features

This product is a power supply unit that generates a stable power supply from a 12VDC or 24VDC car battery power supply. This product can be used to protect computer systems from unstable power supply environments in which problems such as surges, voltage fluctuations, and instantaneous voltage drops occur randomly.

• Supports the voltage drops that occur when an engine starts

  • When an engine starts, the battery voltage drops and may remain at a low voltage for a fixed length of time. This product continues to provide the BOX-PC with a stable power supply even during this period of time.
• Power supply monitoring utility software is available for managing the power supply to industrial equipment

  • The starting and shutting down of BOX-PCs can be linked to the operation of the ignition switch. BOXPCs can be connected to this product by way of a serial or USB interface.
• Supports a wide range of temperatures with operations guaranteed from -20 to 70°C *

  • Stable operations of this product are possible over a wide range of temperatures from -20 to 70°C.
    * After checking the temperature derating, adjust the load factor to match the usage environment.
• A USB cable attachment is available to prevent problems caused by cable disconnections

  • The USB cable attachment enables you to prevent disconnections of the included USB cable, which enables you to prevent problems from occurring.
• Contributes to the miniaturization and weight reduction of equipment and supports front access

  • This product has a case size of 86 (W) × 155 (D) × 44 (H) mm and a weight of 650g. It supports front access, which makes maintenance easy to perform.
