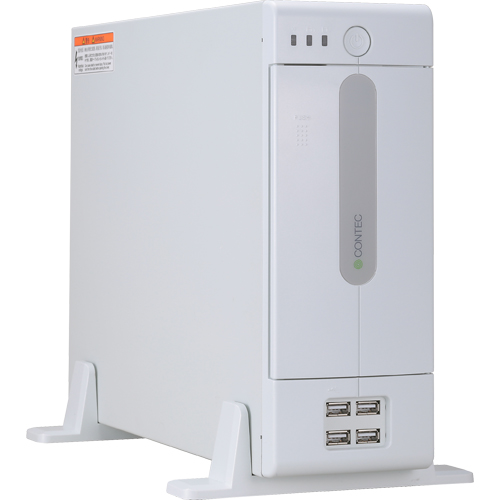

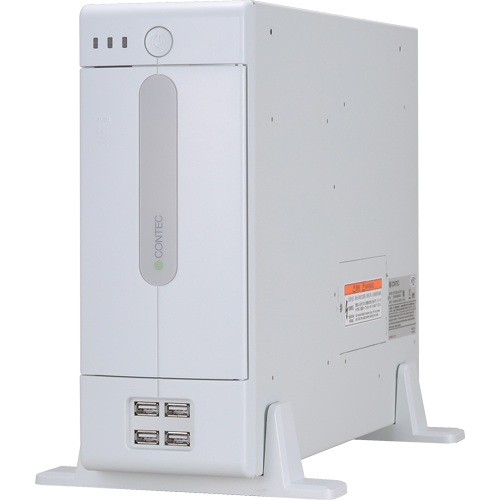

EPC-2020 EPC-2000 - Slim Tower PC / High Expandability / Core i + QM67 (Sandy Bridge) / w/o Expansion Slot / AC Power Supply

  • Discontinued
  • Standard Warranty1 yr
  • モーダルで開く
  • モーダルで開く
  • モーダルで開く
  • モーダルで開く
  • モーダルで開く
  • モーダルで開く
  • End of Repair Service: 2024/09/27

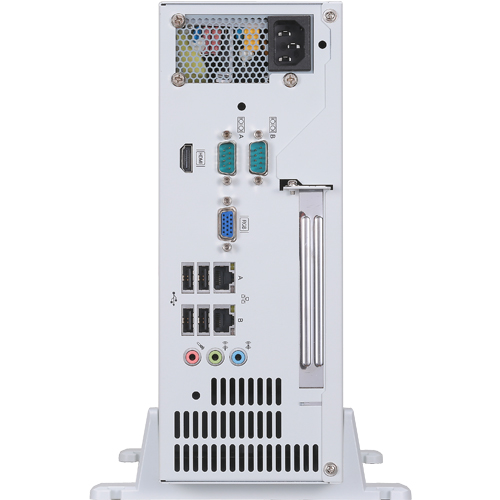

  • Rich peripherals interface

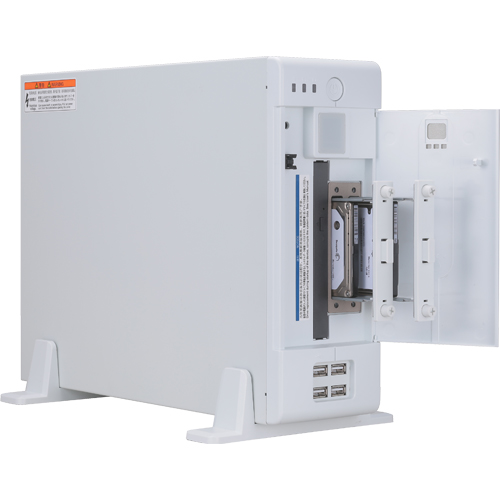

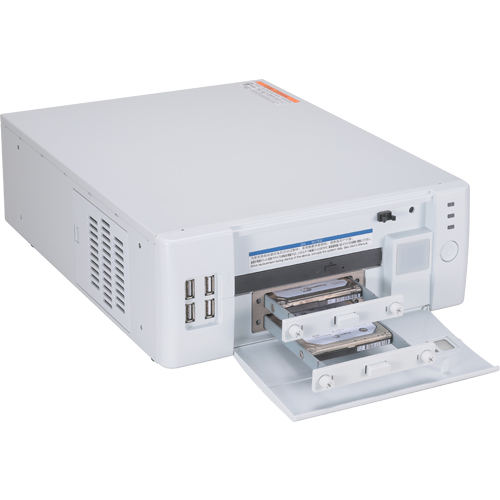

  • Duplicate protection of important data ? Back up to DVD (select with BTO menu)
  • Quiet design with suppressed noise of concern
  • Adopted Intel Sandy Chipset
  • CPU built-in graphics function
  • PCI Express (x16) or PCI board can be mounted (selected in the BTO menu)

Ordering Information

Ordering Information

Model Description Certification
EPC-2020 [End of Repair Service : 27 September, 2024] BTO module
-
EPC-2020P1A-AC17125C [End of Repair Service : 27 September, 2024] Mini-tower case Industrial computer, Celeron B810, 4GB, 1 x PCI slot, 500GB HDD, Win7 Ultimate multi-language(ja/en/kr) mode
  • CCC compliant
  • FCC compliant
  • VCCI
  • CE marking
EPC-2020P1B-AC17124B [End of Repair Service : 27 September, 2024] Mini-tower case Industrial computer, Celeron B810, 4GB, 1 x PCIe(x16) slot, 500GB HDD, Win7 pro mode
  • CE marking
  • FCC compliant
  • VCCI
EPC-2020P1B-AC27124B [End of Repair Service : 27 September, 2024] Mini-tower case Industrial computer, Core i5-2710, 4GB, 1 x PCIe(x16) slot, 500GB HDD, Win7 pro mode
  • CE marking
  • FCC compliant
  • VCCI
EPC-2020P1B-AC27125C [End of Repair Service : 27 September, 2024] Mini-tower case Industrial computer, Core i5-2710, 4GB, 1 x PCIe(x16) slot, 500GB HDD, Win7 Ultimate multi-language(ja/en/kr) mode
  • CCC compliant
  • FCC compliant
  • VCCI
  • CE marking

BTO model

This product is ordered by BTO (Build to Order) method. Please inform the dealer about the BTO menu and request a quotation.

Expansion slot
  • none
  • 1x PCI
  • 1x PCI Express(x16)
CPU
  • Celeron B810
  • Core i5-2510E
  • Core i7-2710QE
Memory
  • 4GB
  • 8GB
Storage
  • none
  • 500GB HDD
  • 500GB HDD Mirroring(Software-RAID)
  • 4GB CFast card
  • 8GB CFast card
OS
  • none
  • Windows Embedded Standard 2009 32-bit Multi-language
  • Windows Embedded Standard 7 32-bit Multi-language
  • Windows XP Professional FES 32-bit Japanese (EOL)
  • Windows XP Professional FES 32-bit Multi-language (EOL)
  • Windows 7 Professional FES 32-bit Japanese
  • Windows 7 Professional FES 64-bit Japanese

* There are combinations that can not be configured. Please inquire in detail.



Options

Extended Warranty Service

Item Item Name
ESP-F5 Extended warranty service package (5 years service course) (Japan only)
ESP-S1 Extended warranty service package (Extension one year) (Japan only)
