GMB-AQ3701-LLVA Industrial Motherboard - ATX / Intel 8th/9th Gen. Core Desktop (Coffee Lake Refresh-S) / Q370 (LGA1151)

• Overview / Features
• Specifications
• Ordering Information
• Support / Downloads

Overview / Features

Intel 8th / 9th Gen. Core Desktop (Coffee Lake Refresh-S) Processor ATX Industrial Motherboard

• Supports Intel 8th / 9th Gen. Core Desktop Processors (LGA1151)

  • Recommeded CPU List:
    Intel Core i7-9700E
    Intel Core i5-9500E
    Intel Core i3-9100E
    Intel Core i7-8700
    Intel Core i5-8500
    Intel Core i3-8100
    Intel Pentium G5400
    Intel Celeron G4900
• Up to 64 GB in 4 slots 288-pin UDIMM sockets. Supports dual channelDDR4 2400/2666 MHz ECC SDRAM
• 1 x PCIe by 16, 3 x PCIe by 4 + 3 x PCI slot
• Six SATA 3.0 (6Gb/s) ports and Twelve USB Ports
• Dual Giga LAN port with intel I219LM and intel I211AT

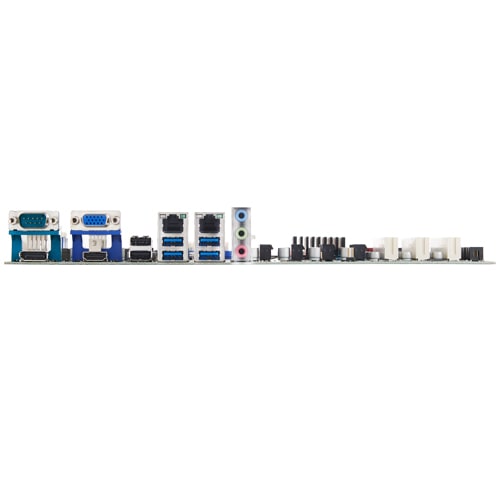

• VGA + HDMI+ Display port by I/O panel
