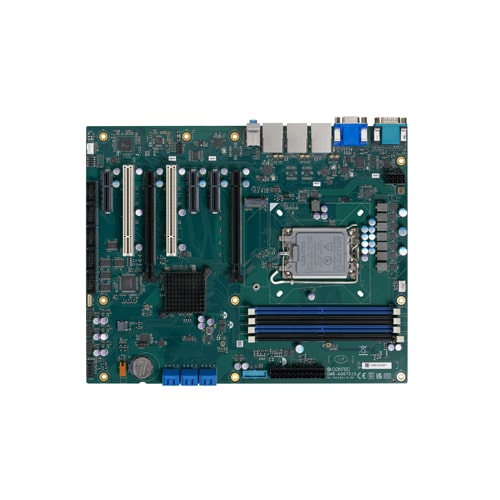

GMB-AQ67010 Industrial Motherboard / ATX / Intel 12th/13th/14th Gen. Processors (Alder Lake-S / Raptor Lake-S / Raptor Lake-S Refresh) / (LGA1700) / 1x PCIe (x16), 1x PCIe (x8), 3x PCIe (x4), 2x PCI, M.2 M key

Intel® 12th / 13th/ 14th Gen. processor Alder Lake-S / Raptor Lake-S / Raptor Lake –S Refresh Platform
4 x DDR5-4400 U-DIMM, up to 128GB (non-ECC support)

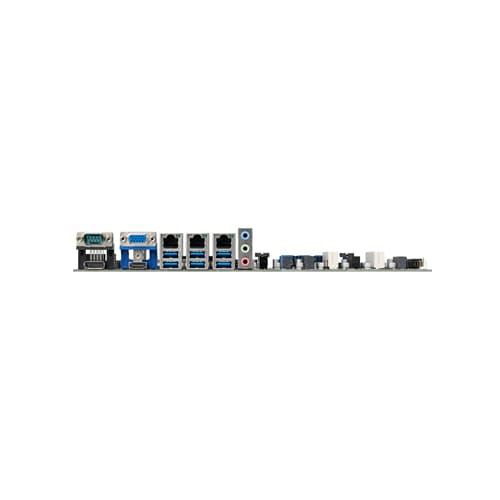

Multi display supported: Display port, HDMI and VGA
Extend Peripherals Freely Rich Interface
