GMB-IC24600 Industrial Motherboard / Mini-ITX / Intel 8th/9th Gen. (Coffee Lake + C246) / DC Power Supply

• Overview / Features
• Specifications
• Ordering Information
• Support / Downloads

Overview / Features

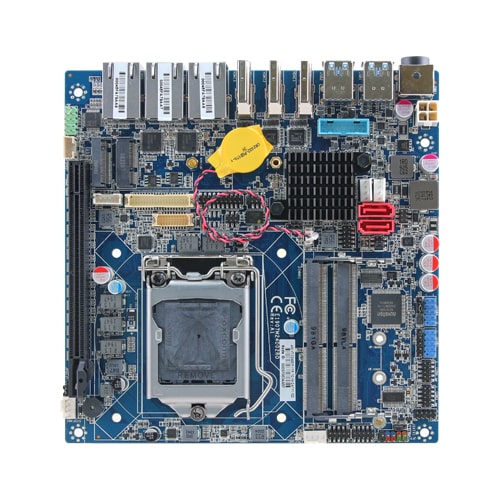

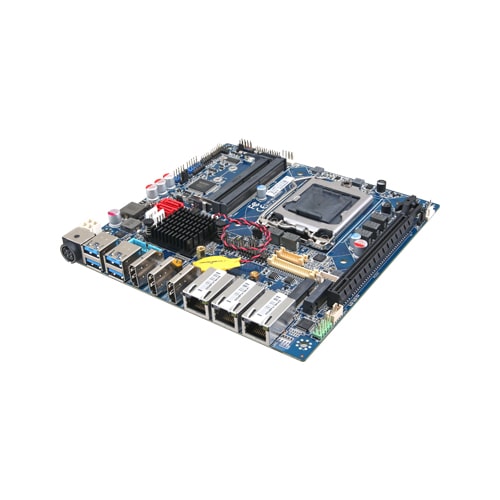

This product is a mini-ITX form factor industrial motherboard with Intel® C246 Chipset. The 8th/9th generation Intel® Xeon® and Core™ processor, up to 65W, are recommend being use with this board.

• Compatible with Intel® 9th Coffee Lake-Refresh Platform

  • This product is equipped with the 8th/9th generation Intel® Xeon®/Core™ Processor. Adopting embedded-type CPU contributes to a stable supply.
    Following CPUs are recommended for customer reference;
    Intel® Core™ i7-8700
    Intel® 8th Generation 65W CPU
    Intel® 9th Generation 65W CPU (4/6 Core)
    Intel® 9th Generation 35W CPU (8 Core)
• Multi-display Supported

  • Unless other motherboards, GMB-IC24600 has 3 HDMI ports for customers with various needs. Moreover, daul-channel 18/24-bit LVDS are also provided in this product.
• Triple Gigabit Ethernet

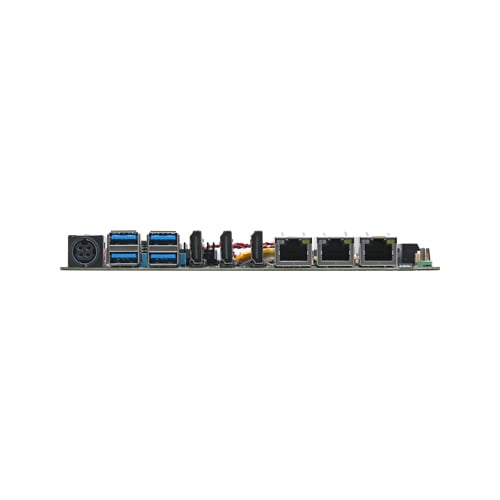

  • The product has 3 RJ45 connectors on rear I/O for customer usage, which are 1 x Intel® I219LM + 2 x Intel® I210AT PCIe chip.
• Extend Peripherals freely Rich Interface

  • This product is equipped with a variety of interfaces such as HDMI, LVDS, 1000BASE-T x 3, USB3.1(Gen2) x 3, USB3.1(Gen1) x 1, serial (RS-232C/422/485) x 1, serial (RS-232C) x 3, GPIO x 1, and audio.
• Support on board TPM2.0
