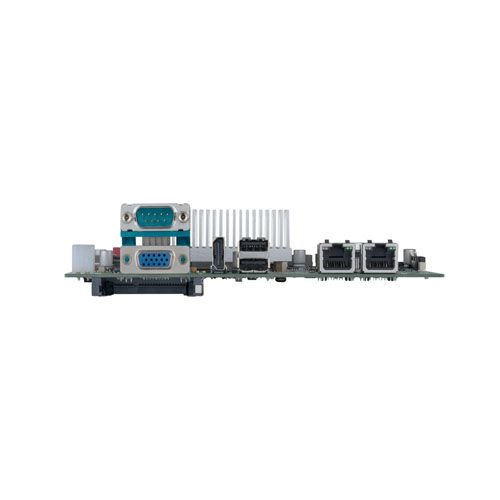

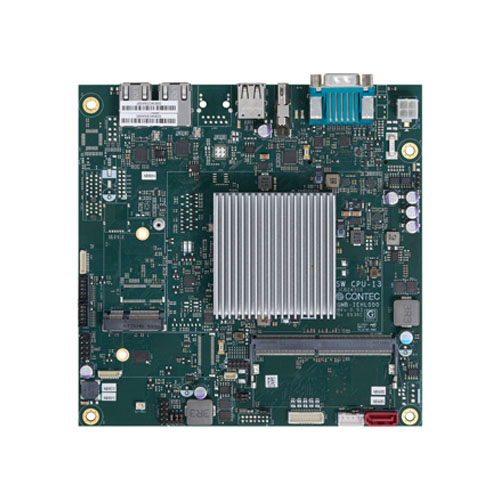

GMB-IEHL200 Industrial Motherboard / Mini-ITX / Intel Atom x6413E (Elkhart Lake) / 1x PCIe

Coming Soon

Standard Warranty2 yr

Intel^® Atom^® x6413E processor for low-power industrial computing.
Triple 2.5GbE LAN and versatile industrial I/O connectivity.
CFast, SATA, Mini PCIe, and M.2 expansion support.
Industrial-grade reliability with dTPM2.0 and hardware monitoring, ACPI power management, and operation up to 70°C with airflow.

Specifications

Form Factor

Type	Mini-ITX

Software Support

Supported OS	Windows 11 IoT Enterprise LTSC 2024

Core System

CPU Generation (Development code)	Elkhart Lake
Processor	Atom x6413E
CPU socket	-
Memory	up to 32GB Non-ECC
RAS	Hardware monitor (Fan speed / Temperature / Voltage); Watchdog timer
GPU	-
AI Performance	-
Security	dTPM 2.0

Interface

Video	1x DisplayPort (v1.2); 1x HDMI; 1x LVDS
LAN	3x 2500BASE-T/1000BASE-T/100BASE-TX/10BASE-T
Wireless	-
Audio	-
I/O	2x USB2.0
Memory card	1x CFast slot

Internal Interface

Video	-
LAN	-
Audio	-
I/O	2x USB2.0; 1x RS-232C; 2x RS-232C/422A/485
Power connector	-

Expansion Slot

Expansion bus	1x Mini PCI Express
Drive bay	-

Power

Input voltage	12VDC

Environment

Operating temperature	-40 to 70°C (-40 to 158°F) with airflow 0.7m/s
Storage temperature	-40 to 80°C (-40 to 176°F)
Standards & Certifications	CE; FCC Class B; UKCA; VCCI Class B
