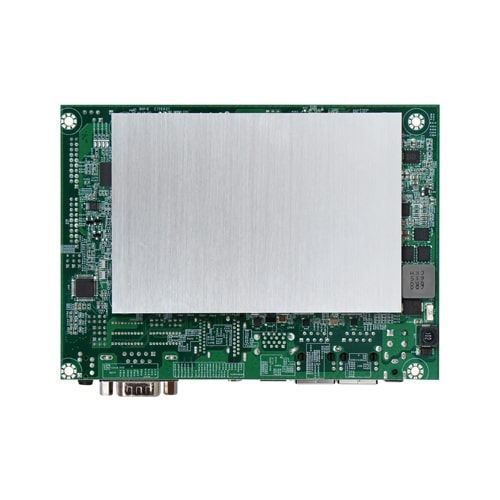

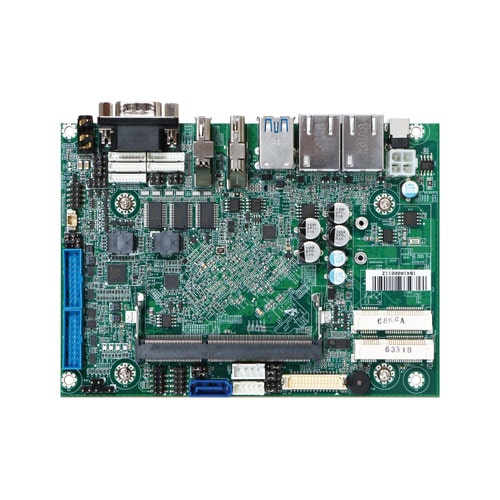

GMB-L3APL300 Industrial Motherboard / 3.5" SBC / Atom x5-E3930 (Apollo Lake SoC) / DC Power Supply

• Overview / Features
• Specifications
• Ordering Information
• Support / Downloads

Specifications

Form Factor

Type	3.5-inch

Software Support

Supported OS	Windows 10 IoT Enterprise 2019 LTSC 64-bit

Core System

Processor	Atom x5-E3930
CPU Generation (Development code)	Apollo Lake
CPU socket	-
Memory	up to 8GB
RAS	-
GPU	-
AI Performance	-
Security	-

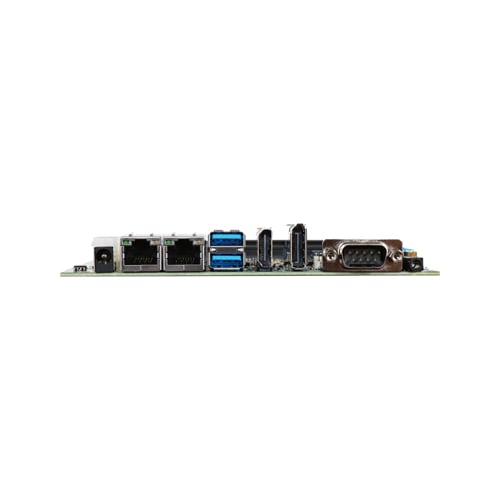

Interface

Video	1x DisplayPort; 1x HDMI
LAN	2x 1000BASE-T
Wireless	-
Audio	1x Line out
I/O	2x USB3.2 Gen1 (USB3.0); 1x RS-232C/422A/485
Memory card	-

Internal Interface

Video	2x LVDS
LAN	-
Audio	1x Line out; 1x Line in; 1x Mic-in
I/O	4x USB3.2 Gen1 (USB3.0); 5x RS-232C
Power connector	1x SATA power

Expansion Slot

Expansion bus	2x Mini PCI Express
Drive bay	-

Power

Input voltage	12 to 24VDC

Environment

Operating temperature	-40 to 60°C (-40 to 140°F) with 0.5m/s airflow
Storage temperature	-40 to 85°C (-4 to 185°F)
Standards & Certifications	CE; FCC Class A
