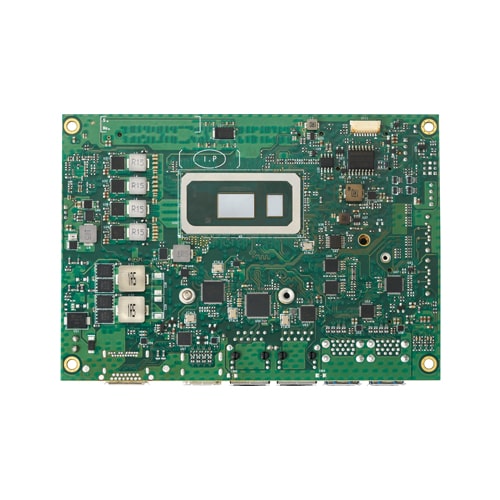

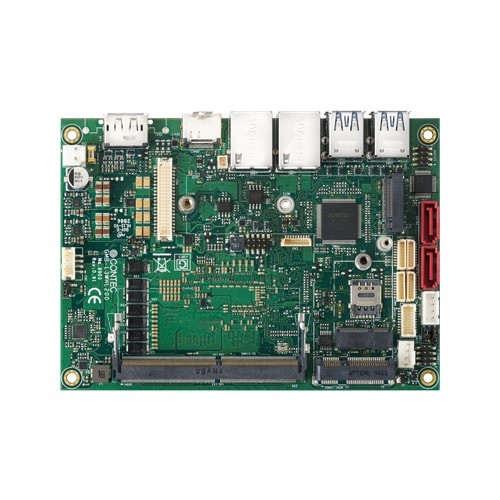

GMB-L3WHL300 Industrial Motherboard / 3.5" SBC / Core i5-8365UE (Whiskey Lake-U SoC) / DC Power Supply

  • Standard Warranty2 yr
  • Intel® 8th Generation Core™ i5-8365UE Processor (whiskey Lake-U)
  • 1 x DDR4-2400 Non-ECC SO-DIMM, up to 16 GB Supported
  • 1 x Full-sized Mini PCIe, 1 x M.2 2280 Key M, and 1 x M.2 2230 Key E Equipped
  • Triple-display, HDMI, DisplayPort, and LVDS Supported

Similar Models

Specifications

Form Factor

Type 3.5-inch

Software Support

Supported OS Windows 10 IoT Enterprise 2019 LTSC 64-bit

Core System

Processor Core i5-8365UE
CPU Generation (Development code) 8th Gen. (Whiskey Lake-U)
CPU socket -
Memory up to 64GB
RAS Hardware monitor (Fan speed / Temperature / Voltage); Watchdog timer
GPU -
AI Performance -
Security TCG TPM 2.0

Interface

Video 1x DisplayPort; 1x HDMI; 1x LVDS
LAN 2x 2500BASE-T
Wireless -
Audio -
I/O 4x USB3.2 Gen2
Memory card -

Internal Interface

Video 1x DisplayPort
LAN 1x 100BASE-TX
Audio 1x Line out; 1x Mic-in
I/O 2x USB2.0; 2x RS-232C; 1x RS-232C/422A/485
Power connector -

Expansion Slot

Expansion bus 1x M.2 Key E (2230); 1x M.2 Key M (2280); 1x Mini PCI Express
Drive bay -

Power

Input voltage 12 to 24VDC

Environment

Operating temperature 0 to 60°C (32 to 140°F) w/ 0.7m/s airflow
Storage temperature -10 to 70°C (14 to 158°F)
Standards & Certifications CE; FCC Class A
