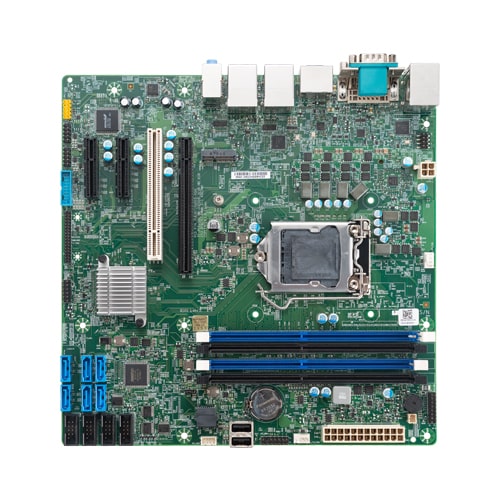

GMB-MQ37000 Industrial Motherboard / Micro ATX / Intel 8th Gen. (Coffee Lake + Q370) / 1x PCIe(x16), 2x PCIe(x4), 1x PCI

Standard Warranty1 yr

Support Intel® 8th Gen. Core TM Processor (LGA1151)
Up to 64 GB maximum DDR4 2666 MHz non ECC U-DIMM on 4 sockets.
1 x PCIe by 16 (Gen 3) , 2 x PCIe by 4 (Gen 3) , 1 x PCI
6 x SATA 3.0 ports and 14 x USB Ports
3 x Giga LAN port with intel 1 x I219LM and 2 x intel I211AT

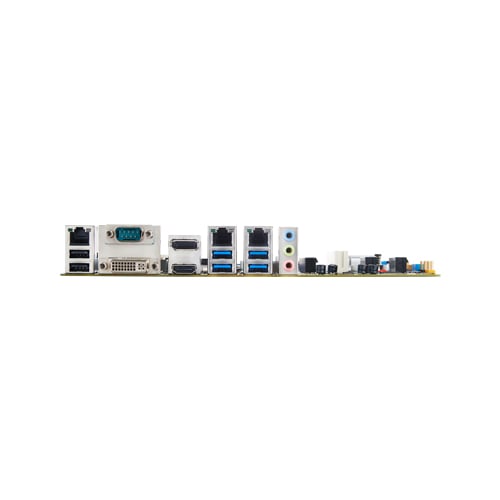

DVI-I + HDMI 1.4+ Display port 1.2 by I/O panel

BUY NOW - U.S. Customers can purchase online in the Contec Americas eShop

Specifications

Form Factor

Type	Micro ATX

Software Support

Supported OS	Windows 10 IoT Enterprise 2019 LTSC 64-bit

Core System

Processor	Core i7-8700; Core i7-8700T; Core i5-8500; Core i5-8500T; Celeron G4900; Celeron G4900T
CPU Generation (Development code)	8th Gen. (Coffee Lake-S)
CPU socket	LGA1151
Memory	up to 64GB
RAS	Hardware monitor (Fan speed / Temperature / Voltage); Remote power-on; Watchdog timer
GPU	-
AI Performance	-
Security	-

Interface

Video	1x DisplayPort; 1x HDMI; 1x DVI-I
LAN	3x 1000BASE-T
Wireless	-
Audio	1x Line out; 1x Line in; 1x Mic-in
I/O	4x USB3.2 Gen2; 2x USB2.0; 1x RS-232C/422A/485
Memory card	-

Internal Interface

Video	-
LAN	-
Audio	1x Line out; 1x Mic-in
I/O	2x USB3.2 Gen1; 6x USB2.0; 4x RS-232C
Power connector	1x 24-pin ATX

Expansion Slot

Expansion bus	1x M.2 Key E (2230); 1x PCI Express(x16); 2x PCI Express(x4); 1x PCI
Drive bay	-

Power

Input voltage	-

Environment

Operating temperature	0 to 60°C (32 to 140°F) with 0.7m/s airflow
Storage temperature	-20 to 70°C (-4 to 158°F)
Standards & Certifications	CE; FCC Class A
