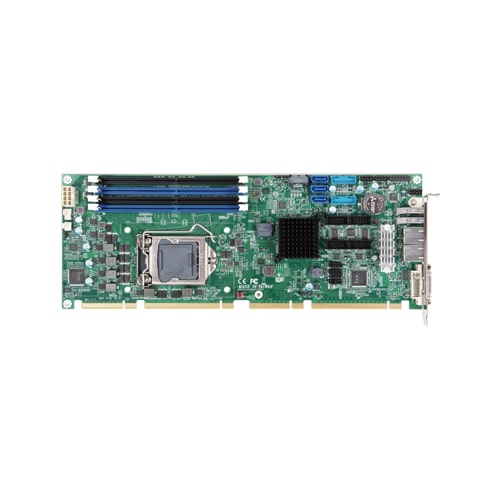

GSPI-Q4700-LLVA Industrial Single Board Computer - PICMG 1.3 / Intel 10th Gen. Processors (Comet Lake - S Platform) / Q470E (LGA1200)

• Overview / Features
• Specifications
• Ordering Information
• Support / Downloads

Overview / Features

This product is a PICMG 1.3 form factor industrial mainboard which based on Intel® Core™Processors that offer 14nm Hi-K process technology with energy efficient architecture, GSPI-Q4700-LLVA adopts four DDR4 UDIMM sockets and supports up to 128GB Non-ECC memory, PICMG 1.3 solutions are suitable for factory automations. Moreover, with the high performance and high-end specifications. GSPI-Q4700-LLVA is our Comet Lake-S platform architecture on Industrial Motherboard product line.

Usage Examples

• Intel® 10th Comet Lake-S Platform

  • CPU Selection Guide (Non-ECC memory supported):
    Intel Core i9-10900E
    Intel Core i9-10900TE
    Intel Core i7-10700E
    Intel Core i7-10700TE
    Intel Core i5-10500E
    Intel Core i5-10500TE
    Intel Core i3-10100E
    Intel Core i3-10100TE
    Intel Pentium Gold G6400E
    Intel Pentium Gold G6400TE
    Intel Celeron G5900E
    Intel Celeron G5900TE

• Multi-display Supported

  • Full HD video can be smoothly played. It also supports output of the VGA, DVI-D Port, and HDMI.
• Dual Gigabit Ethernet

  • The product has 2 RJ45 connectors on rear I/O for customer usage, which are Intel® I219LM + Intel® 210AT PCIe chip.
• Extend Peripherals Freely Rich Interface

  • This product is equipped with a variety of interfaces such as serial port, USB 3.2/ 2.0, 8-bit GPIO, audio jack, Line-out/ Mic-in, M.2 Key M 2280, Giga LAN, HDMI, ect. For customers with various needs.
