GPC-710 GPC-710 - Automation Computers / Core i5-10500TE (Comet Lake) / 2x 2.5-inch drive bays / AC Power Supply / 18certifications

• Overview / Features
• Specifications
• Ordering Information
• Support / Downloads

Overview / Features

This product is a BTO industrial computer that support an 10th generation Intel® Core™ processor series. The Intel® W680E chipset with DDR4 memory (Max. 32GB) provides advanced computing and graphical performance. This product features a variety of interfaces such as one each port of HDMI, DisplayPort, Analog RGB six USB 3.2 Gen1(USB 3.0) ports (rear: 6), two USB 2.0 ports (front: 2), one serial port (RS-232C/422A/485×1), three 1000BASE-T ports, , one PCI-Express(x16) Expansion Slots, which can be used in a wide range of embedded applications such as general-purpose PC OS-based controllers and information terminals.

• Compatible with Intel® Core™ processor series Comet Lake

  • The product is equipped with the 10th-generation Intel® Core™ processor and greatly realizes lower-power consumption while ensuring fine performance of operation tasks and drawing. Adopting embedded-type CPU contributes to a stable supply.
• The compact size that can install at a small area

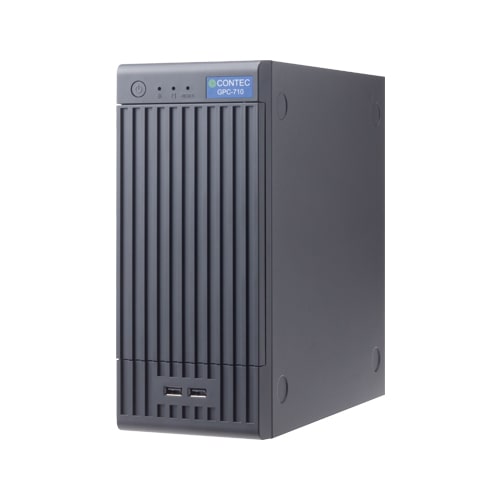

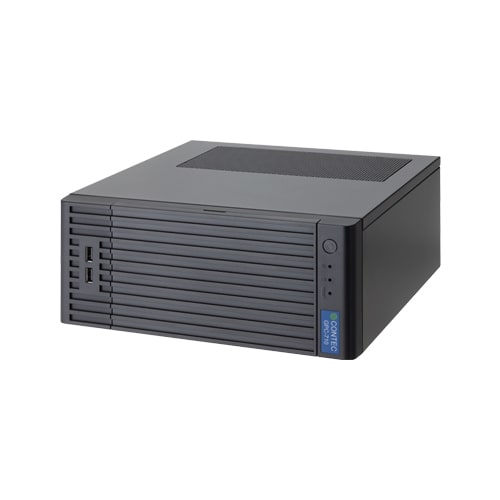

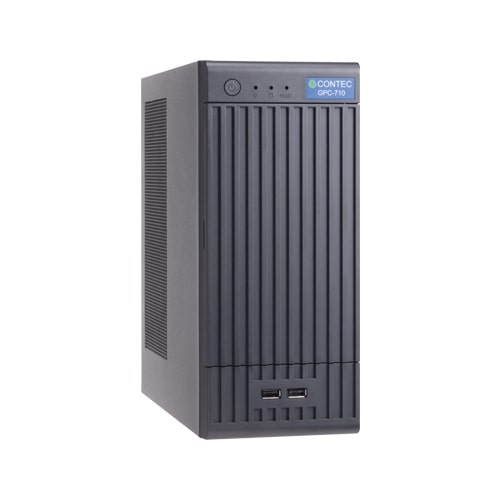

  • This product is a compact size PC of 264(W)×264(D)×112(H)mm that can install at a small area.
• Supports mirroring (RAID1)

  • Mirroring enables the construction of redundant systems.

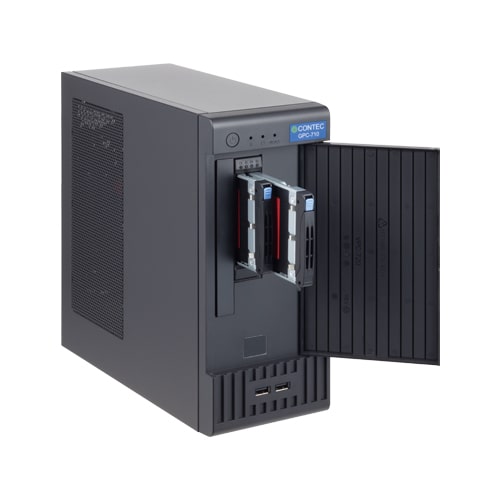

    [Hardware RAID] Selecting the optional mirror card enables the construction of hardware mirroring. Hot-swapping is also supported.
    [Software RAID] Software mirroring can be constructed, but hot-swapping is not supported.
• Major types of peripherals are supported with rich interfaces including

  • It has a variety of extended interface such as HDMI x 1, DisplayPort x 1, Analog RGB x 1, 1000BASE-T x 3, USB 3.2 Gen1(USB 3.0) x 6, USB 2.0 x 2, serial (RS-232C/RS-422A/RS-485) x 1, Audio. Selectable configuration lets you choose from 2.5GBASE-T × 1 or serial RS-232C × 2 interfaces.
• Conforming to various global standards

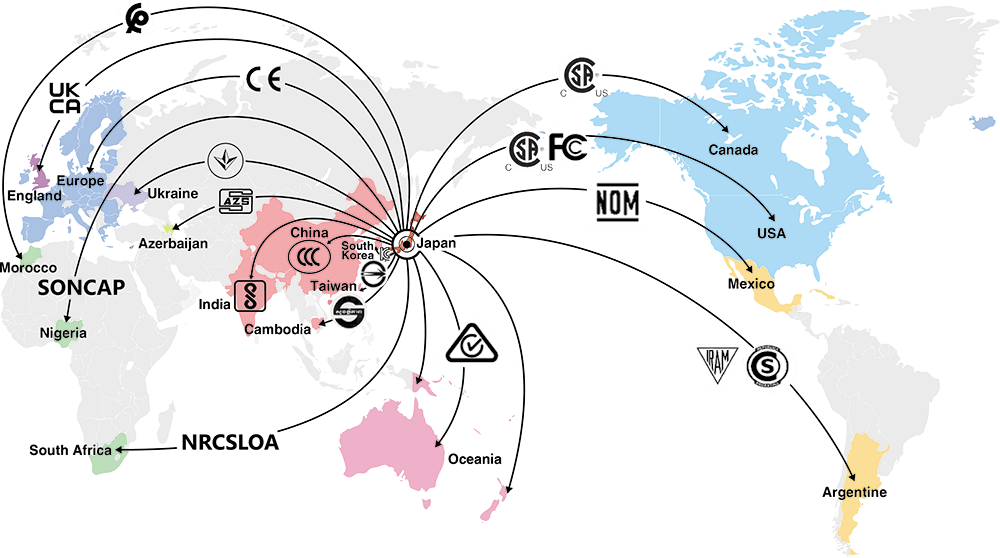

  • This product is conforming to the standards of the following countries.
    Japan (VCCI), United States of America (FCC, CSA), Canada (CSA), Mexico (NOM), Argentina (IRAM), Europe (CE), Great Britain (UKCA), Ukraine (Ukr Sepro), China (CCC), South Korea (KC), Taiwan (BSMI), Oceania (RCM), South Africa (NRCS LOA), Cambodia (KS Compliance), Nigeria (SONCAP), India (BIS), Morocco (CMIN), Azerbaijan (AZ).
